About the product

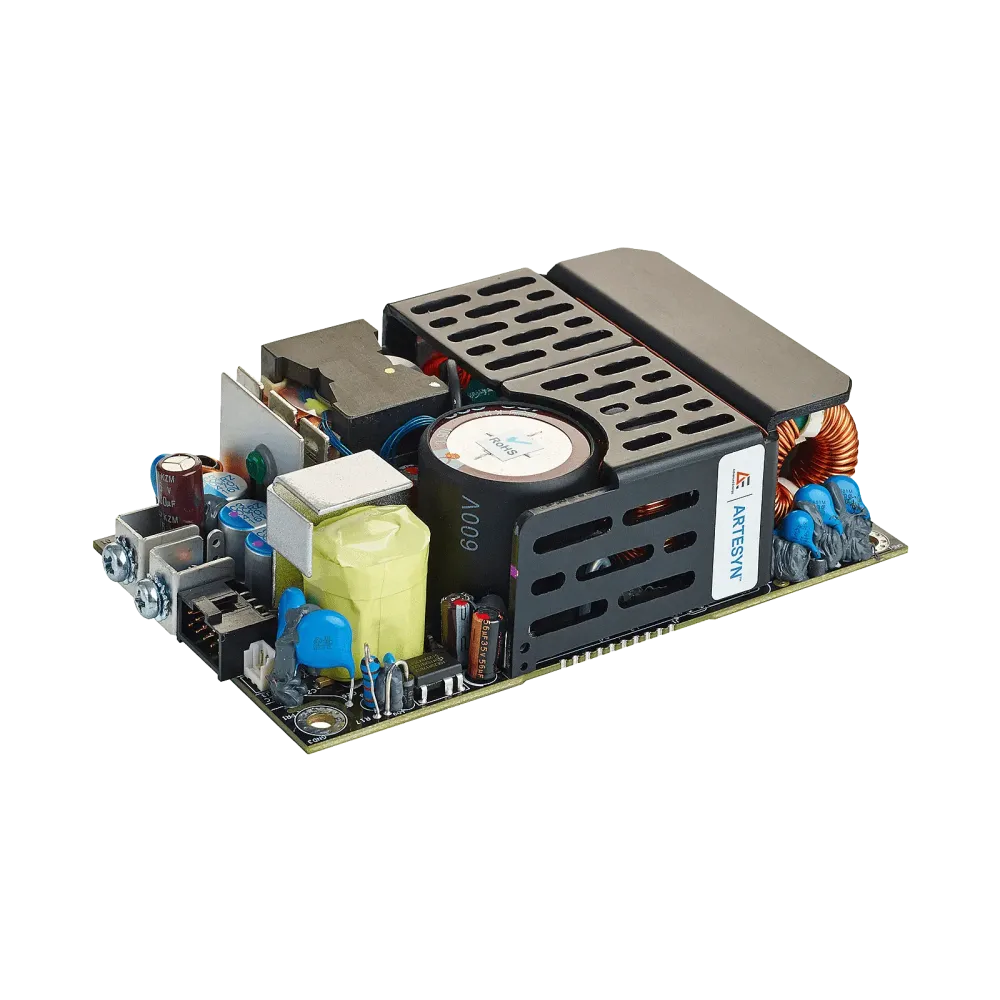

Artesyn's open frame AC/DC power supply LPS360-M series includes 5 single output models with voltages of 12V, 15V, 24V, 36V or 48Vdc. Each power supply also offers 12Vdc fan and 5Vdc standby outputs. All 5 models have ITE industrial and medical safety approvals and accept a wide input range of 90V..264Vac or 120V..300Vdc. Comprehensive overcurrent, overvoltage and overtemperature protection are standard features. Additional features include remote monitoring of the main output, a power fail signal and PMBus/I2C for basic monitoring and control. The LPS360-M series has a full load efficiency of up to 92%. Depending on the operating conditions, it offers an output power of up to 240Watt with free convection cooling and up to 360Watt with 400LFM forced air. The AC/DC converter is less than 1U high and is ideal for light industrial systems as well as patient contact medical applications (type BF).
Technical data
- 360 watt output power with medical and industrial safety approval
- Suitable for BF applications
- Active power factor correction
- Double input fuse
- 3 "x 5" basic print
- PMBus commands
- Remote sense
- Power fail
- Adjustable voltage output
- Level B conducted EMI - Class I or Class II (input)
- Overvoltage protection
- Overcurrent protection
- Overtemperature protection
- 12Vdc fan output
- LPX200 housing set available
- 5Vdc standby output
- Remote Inhibit
- Warranty 3 years
- Manufacturer Artesyn
Product specifications
| Output voltage (VDC) | 48 V |
| Control signals | Remote ON/OFF, Remote Sense |
| Status signals | Power failure |
| Manufacturer | Artesyn |
| Height | 34.6 mm |
| Protection class | Class I, Class II |
| Width | 76.2 mm |
| Power | 360 W |
| Length | 127 mm |
| Standard size | 3 x 5 inches |
| Application | ITE/AV, Medical |
| Additional functions | 5VDC auxiliary output, 12VDC auxiliary output, peak power |
