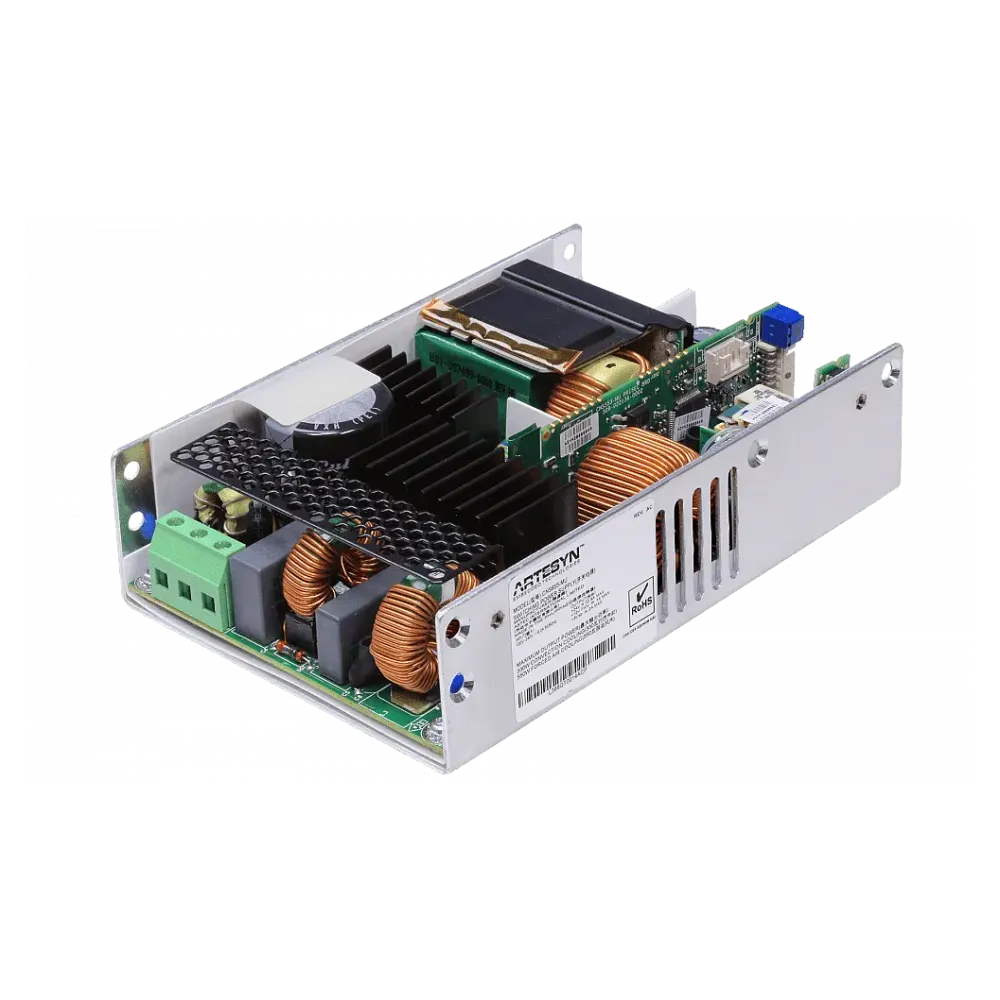

650W medical power supply 48Vdc/13.5A

The AC/DC open frame power supplies of the Artesyn CNS650-MU series from Advanced Energy with single output are available with 3 outputs of 12V, 24V or 48Vdc and a trim range of +15%. Each power supply has a 12Vdc fan output and 5Vdc standby. All models have ITE approvals for industrial and medical safety and accept a universal input of 90..264Vac. Depending on operating conditions, the compact and high-density 4 "x 6 "x 1.54" U-profile design delivers up to 400 watts of output power with free convection cooling and up to 650 watts with 400 LFM forced ventilation. These AC/DC converters are ideal for industrial systems and medical applications

Technical data

• Designed for forced ventilation and natural convection cooling
• 360 watt output power with industrial and medical safety approvals, 2xMOPP
• 4''x 6'' basic print
• PMBus® interface
• Active current share with ORing FET
• Double input fuse
• Active power factor correction, 61000-3-2 compliant
• Built-in Class B EMI filter
• Less than 1U high
• No load power consumption <500mW
• Warranty 3 years
• Manufacturer Artesyn
