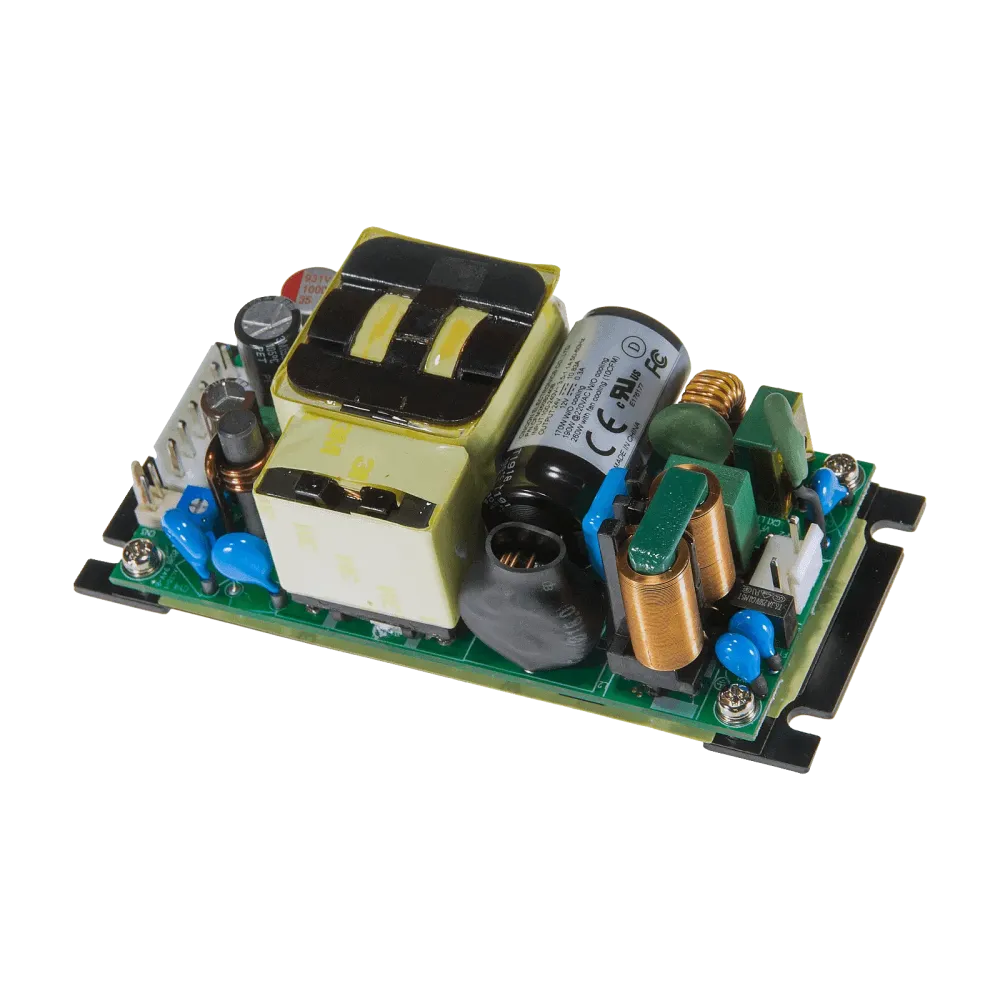

260W open frame power supply 24V/10.83A with baseplate

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

The CFM260S series is Cincon's new high power density ITE AC/DC open frame power supply for Class I applications. It has safety approvals according to IEC/UL/EN62368-1 and complies with IEC/EN60335-1. Version for baseplate cooling

Technical data

Universal input range 85.. 264Vac
High efficiency 93.5%
2" x 4" compact size
220W with natural convection
260W fan-cooled
No load power consumption <0.2 Watt
12V fan output
Continuous short-circuit protection
Overtemperature protection
Operating altitude 5000m
Complies with EN55032 (Class B)
IEC/EN/UL62368-1 approval
Complies with IEC/EN60335-1

Product specifications

Output voltage (VDC)	24 V
Manufacturer	Cincon
Protection class	Class I
Width	50.8 mm
Power	260 W
Length	116.8 mm
Height	38.6 mm
Additional functions	12VDC auxiliary output
Application	Budget, ITE/AV
