About the product

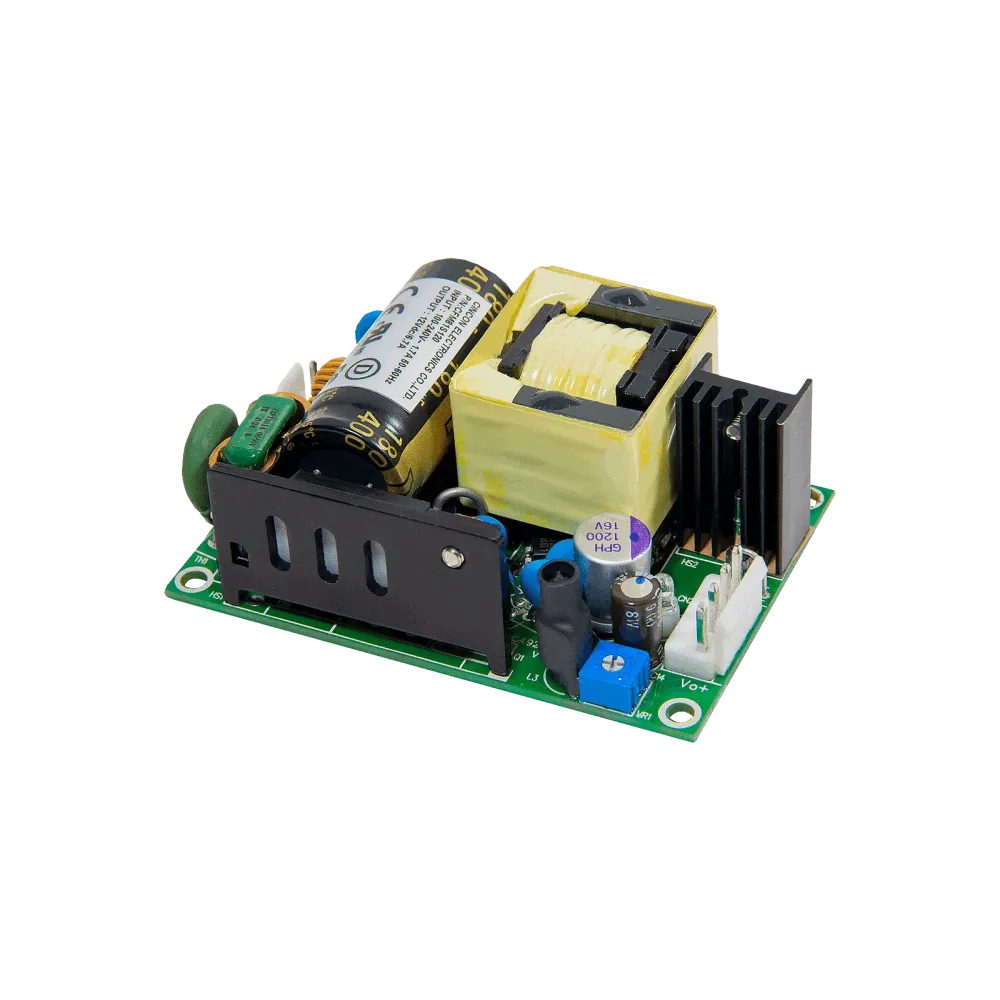

CFM81S240 is a Class I or Class II AC/DC power supply unit with high power density and compact dimensions. Open frame version.
Technical data
- Universal input range 90.. 264Vac
- High efficiency 91%
- 2 "x 3" size
- No load power consumption <0.3 Watt
- Peak load (2 times rated current (note7))
- Continuous short-circuit protection
- Complies with EN60335-1
- Class I and Class II
- Approved IEC/EN/UL62368-1
- Complies with EN55032 Class B and CISPR/FCC Class B
Product specifications
| Output voltage (VDC) | 24 V |
| Application | Budget, ITE/AV |
| Height | 34 mm |
| Length | 76.2 mm |
| Standard size | 2 x 3 inches |
| Protection class | Class I, Class II |
| Width | 50.8 mm |
| Manufacturer | Cincon |
| Power | 80 W |
| Additional functions | Peak Power |
