About the product

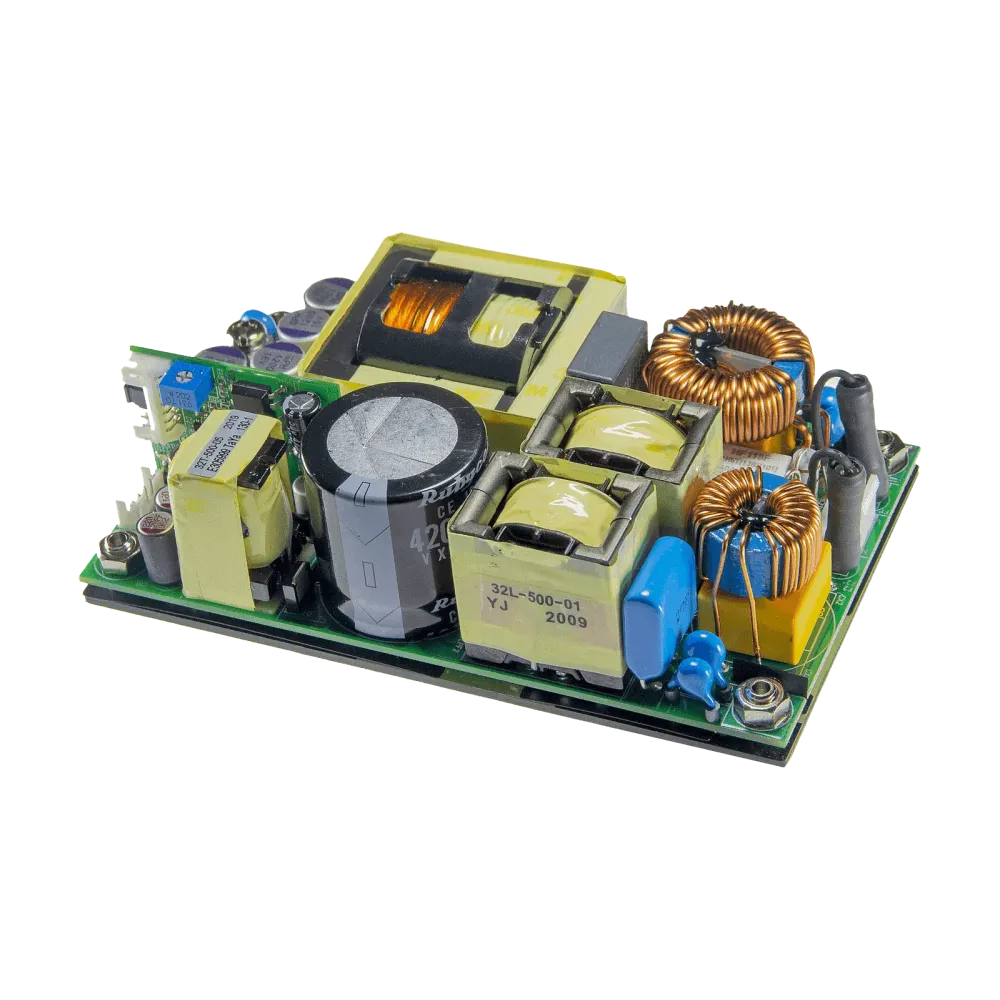

CFM500S480 from Cincon. An ITE/AV power supply with high power density, up to 500 watts on a 5x 3 footprint with baseplate cooling.
Technical data
- Universal input range 80.. 264Vac
- High efficiency 94.5%
- 3" x 5" compact size
- Low inrush current
- High power density up to 20.96W/cubic inch
- 390 watt convection without thermal connection
- 470..500 Watt convection with base plate
- No load power consumption <0.5 Watt
- Overtemperature protection
- PS on/off remote control
- Power Good and Power Fail Signal
- +5V standby, 12V fan output
- Active PFC complies with EN61000-3-2
- Complies with EN55032 Class B
- Complies with IEC/EN60335
Product specifications
| Output voltage (VDC) | 48 V |
| Control signals | Remote ON/OFF, Remote Sense |
| Application | Budget, ITE/AV |
| Status signals | Power good signal |
| Width | 76.2 mm |
| Power | 500 W |
| Length | 127 mm |
| Standard size | 3 x 5 inches |
| Protection class | Class I |
| Height | 39.1 mm |
| Manufacturer | Cincon |
| Additional functions | 5VDC auxiliary output, 12VDC auxiliary output |
