About the product

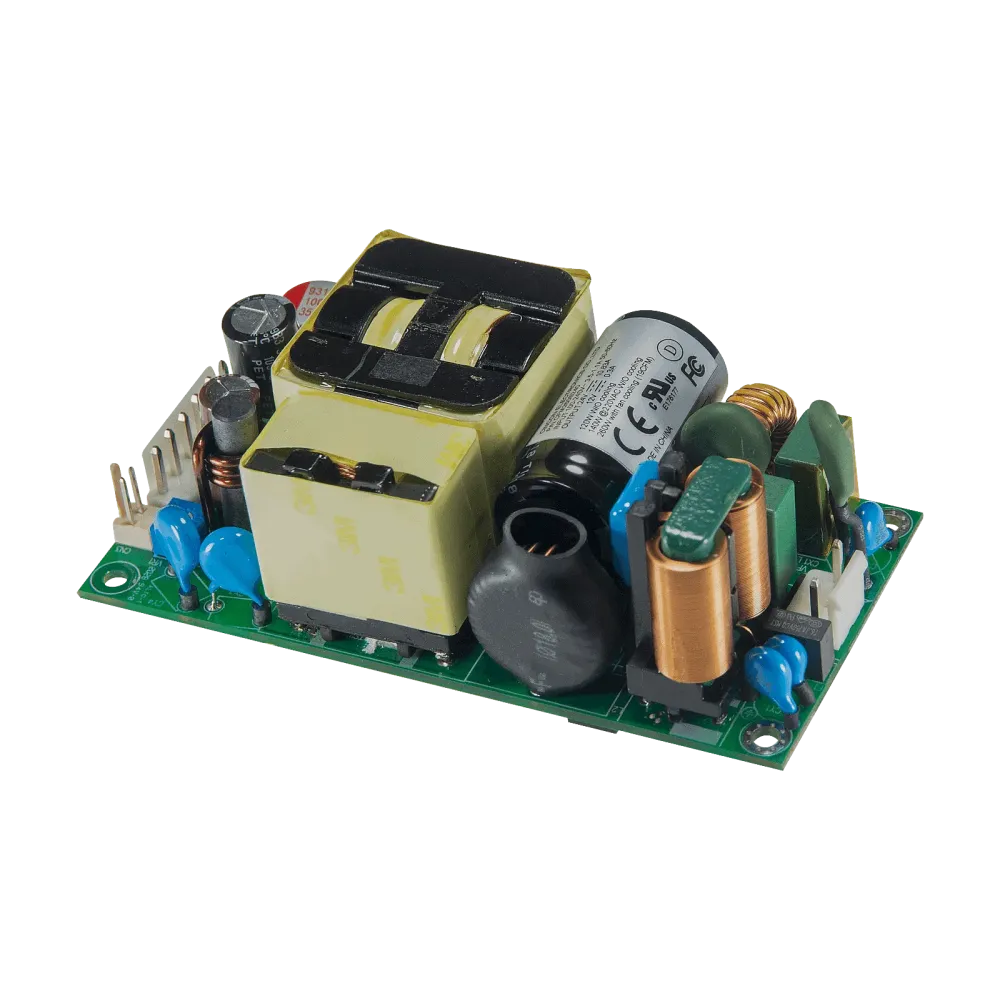

CFM260S480 is Cincon's new ITE AC/DC open frame power supply with high power density, for Class I applications. It has safety approvals according to IEC/UL/EN62368-1 and complies with IEC/EN60335-1.
Technical data
- Universal input range 85.. 264Vac
- High efficiency 93.5%
- 2" x 4" compact size
- 220W with natural convection
- 260W fan-cooled
- No load power consumption <0.2 Watt
- 12V fan output
- Continuous short-circuit protection
- Overtemperature protection
- Operating altitude 5000m
- Complies with EN55032 (Class B)
- IEC/EN/UL62368-1 approval
- Complies with IEC/EN60335-1
Product specifications
| Output voltage (VDC) | 48 V |
| Additional functions | 12VDC auxiliary output |
| Height | 36.6 mm |
| Power | 260 W |
| Width | 50.8 mm |
| Length | 101.6 mm |
| Standard size | 2 x 4 inches |
| Protection class | Class I |
| Manufacturer | Cincon |
| Application | Budget, ITE/AV |
