260W Open Frame power supply 24V/10.83A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

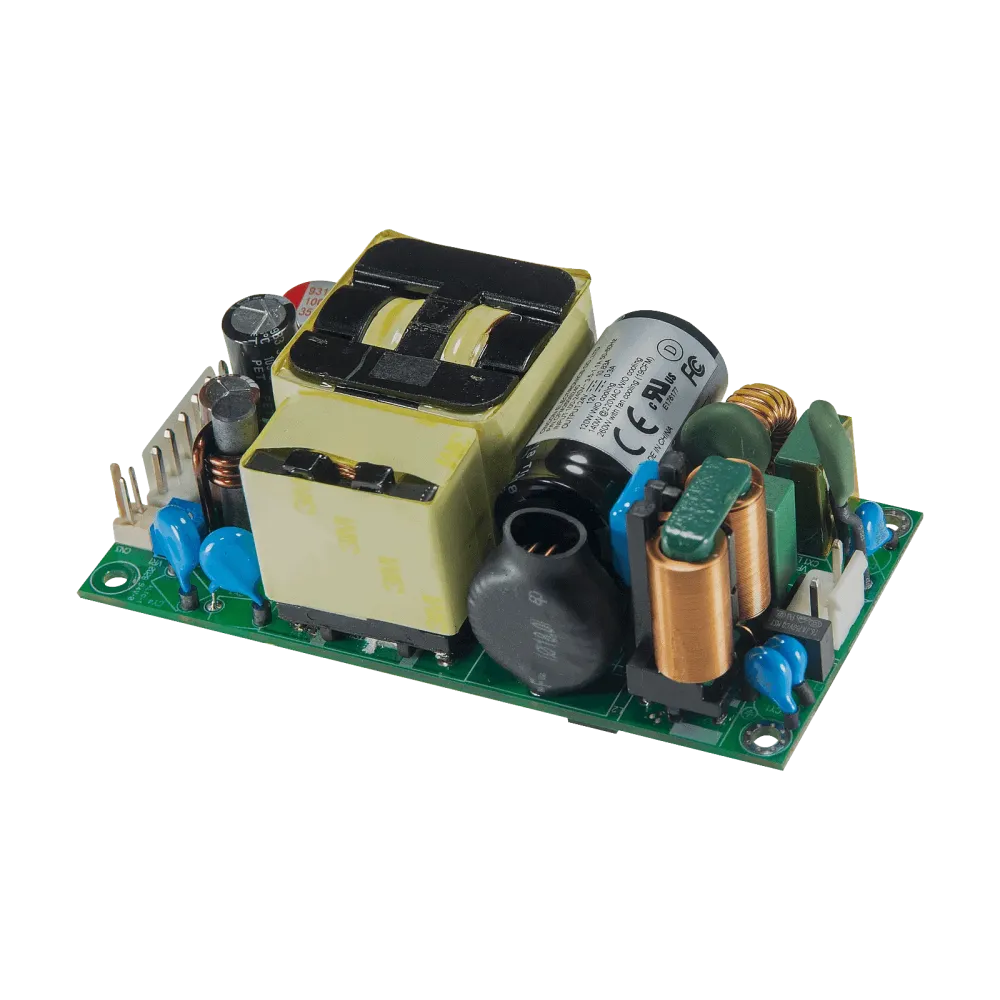

CFM260S240 is Cincon's new ITE AC/DC open frame power supply with high power density, for Class I applications. It has safety approvals according to IEC/UL/EN62368-1 and complies with IEC/EN60335-1.

Technical data

Universal input range 85.. 264Vac
High efficiency 93.5%
2" x 4" compact size
220W with natural convection
260W fan-cooled
No load power consumption <0.2 Watt
12V fan output
Continuous short-circuit protection
Overtemperature protection
Operating altitude 5000m
Complies with EN55032 (Class B)
IEC/EN/UL62368-1 approval
Complies with IEC/EN60335-1

Product specifications

Output voltage (VDC)	24 V
Additional functions	12VDC auxiliary output
Height	36.6 mm
Power	260 W
Width	50.8 mm
Length	101.6 mm
Standard size	2 x 4 inches
Protection class	Class I
Manufacturer	Cincon
Application	Budget, ITE/AV
