About the product

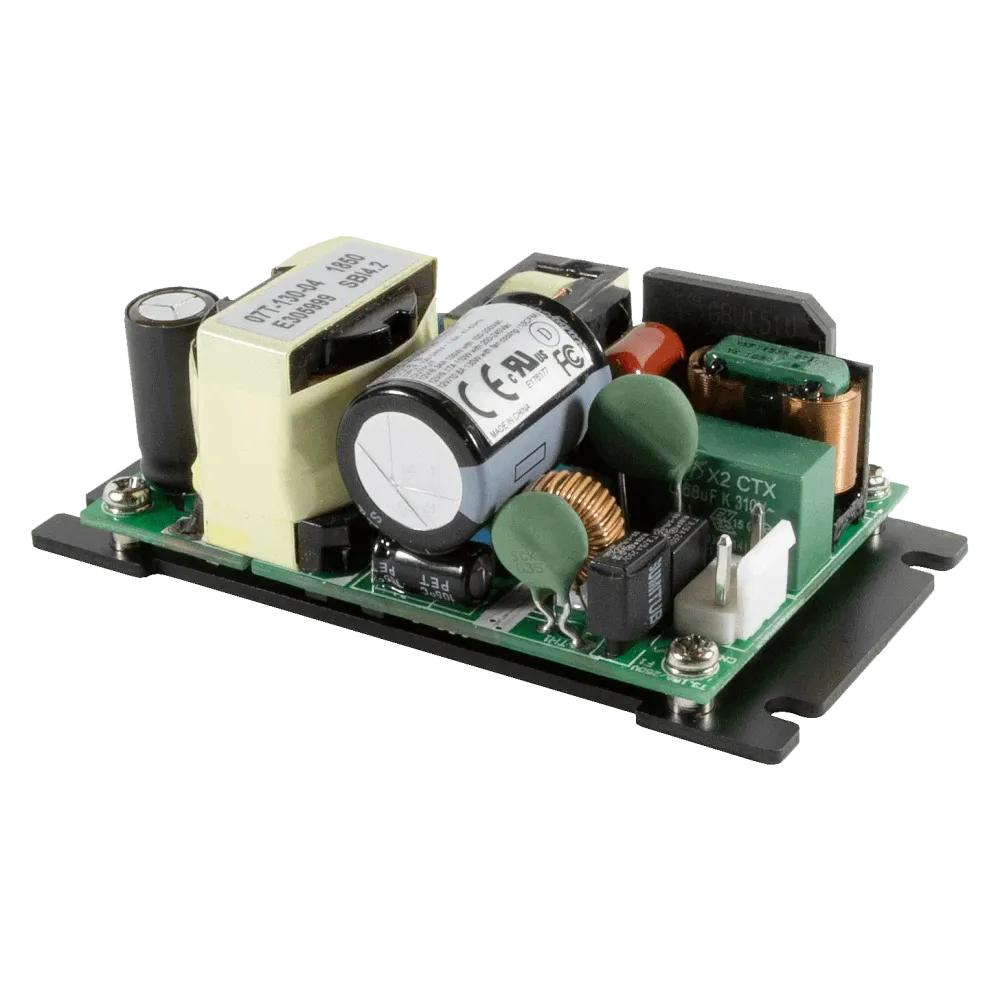

CFM130S120-B from Cincon is a high power density ITE AC/DC open frame power supply that is compatible with both Class I and Class II and offers 130W of power in a 2×3 inch (50.8×76.2×30.5 mm) dimension. It has safety approvals according to IEC/UL/EN62368-1 and complies with IEC/EN60335-1.
The "-B" version can be thermally connected to the device housing via the base plate to improve derating at high temperatures.
Technical data
- Universal input range 80.. 264Vac
- High efficiency 94%
- Active PFC function
- 2 "x 3" open frame Compact size
- 100 watts with natural convection
- 130 Watt fan-cooled
- No load power consumption 150mWatt
- Continuous short-circuit protection
- Operating altitude 5000m
- Complies with IEC/EN60335-1
- Approved safety IEC/EN/UL62368-1
- EMI Safety Meets Class I and Class II
Product specifications
| Output voltage (VDC) | 12 V |
| Manufacturer | Cincon |
| Width | 50.8 mm |
| Power | 130 W |
| Protection class | Class I, Class II |
| Length | 91.4 mm |
| Height | 33 mm |
| Application | Budget, ITE/AV |
