130W Open Frame power supply 12V/10.8A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

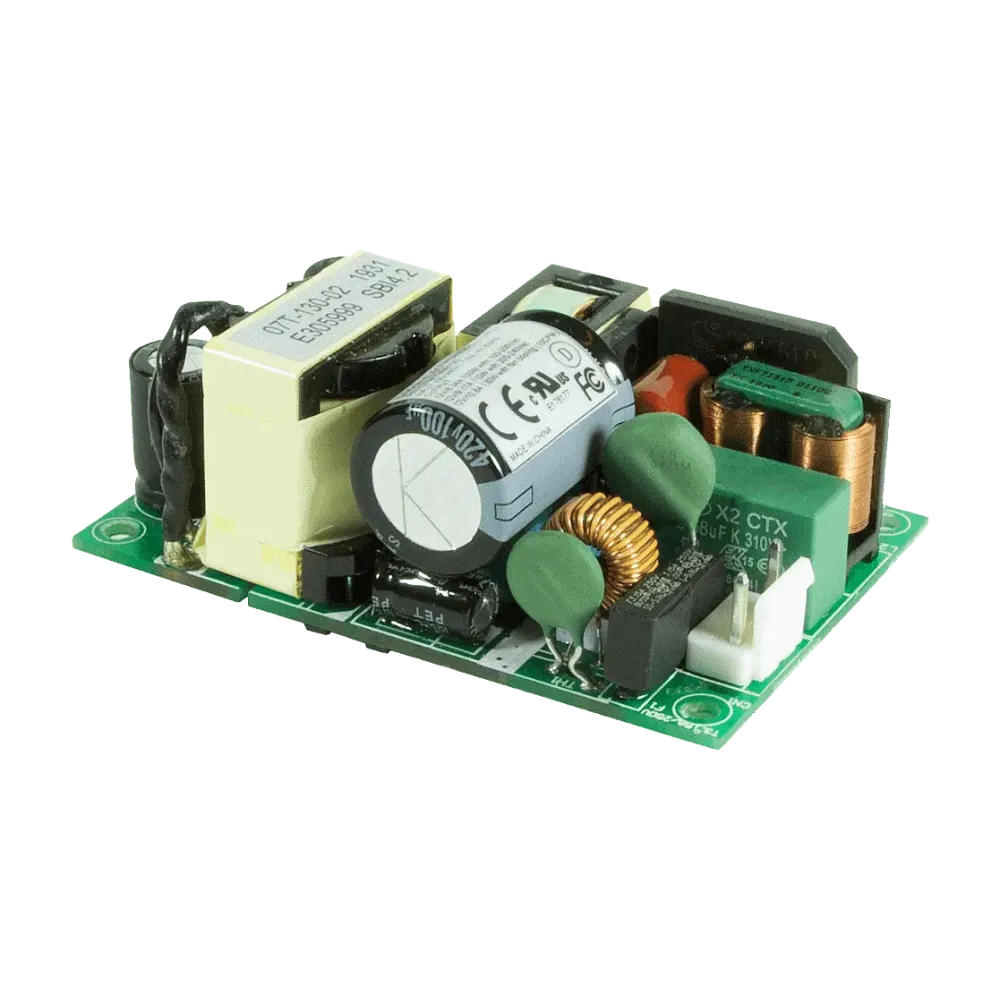

CFM130S120 from Cincon is a high power density ITE AC/DC open frame power supply that is compatible with both Class I and Class II and offers 130W of power in a 2×3 inch (50.8×76.2×30.5 mm) dimension. It has safety approvals according to IEC/UL/EN62368-1 and complies with IEC/EN60335-1.

Technical data

Universal input range 80.. 264Vac
High efficiency 94%
Active PFC function
2 "x 3" open frame Compact size
100 watts with natural convection
130 Watt fan-cooled
No load power consumption 150mWatt
Continuous short-circuit protection
Operating altitude 5000m
Complies with IEC/EN60335-1
Approved safety IEC/EN/UL62368-1
EMI Safety Meets Class I and Class II

Product specifications

Output voltage (VDC)	12 V
Height	30.5 mm
Manufacturer	Cincon
Width	50.8 mm
Power	130 W
Protection class	Class I, Class II
Standard size	2 x 3 inches
Length	76.2 mm
Application	Budget, ITE/AV
