130W medical open frame power supply 12V/10.8A

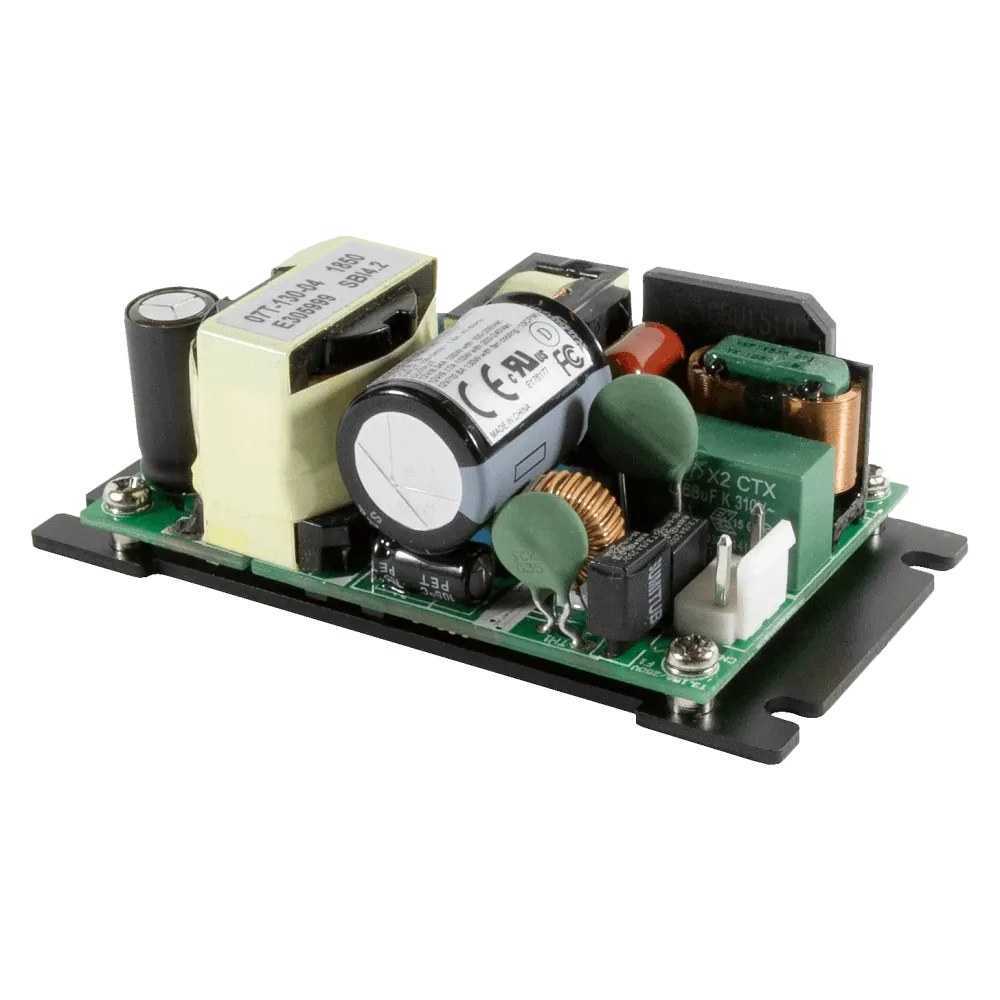

Cincon's CFM130M120-B is a 2 MOPP, high power density, open frame AC/DC medical power supply that is both Class I and Class II compatible and provides 130W of power in a 2×3 inch (50.8×76.2×30.5 mm) footprint. It has safety approvals according to UL60601-1/IEC60601-1/EN60601-1 Ed.3.1 and complies with IEC/EN60335-1. The "-B" version can be thermally connected to the device housing via the base plate to improve derating at high temperatures.

Technical data

• Input voltage range 90 to 264Vac
• No load power consumption <75mW
• Class II
• High efficiency 87%
• Complies with IEC60601-1, EN60601-1 and ES60601-1, 2 MOPP
• Complies with EN60335-1
• Protective circuits: Permanent short circuit and overvoltage
