About the product

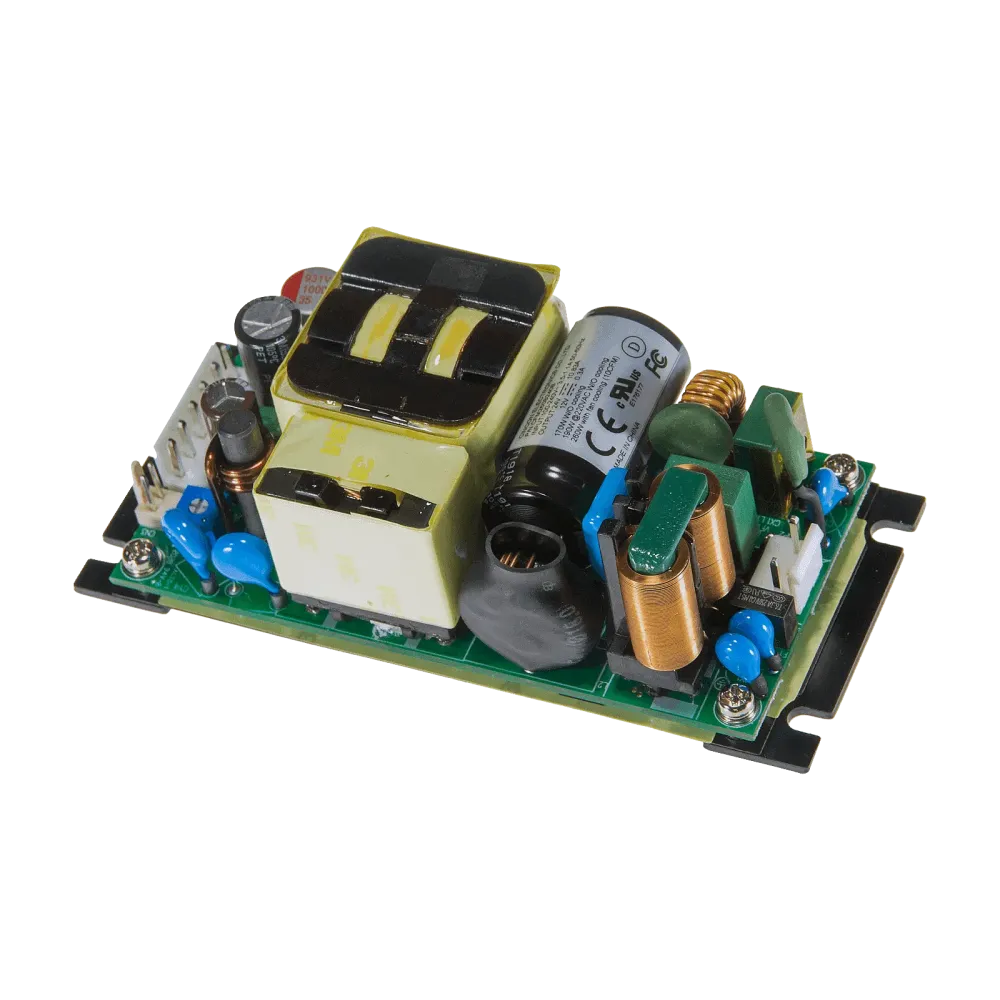

CFM150S480-B is Cincon's new high power density ITE AC/DC open frame power supply that is compatible with both Class I and Class II and offers 150W of power with baseplate cooling, measuring 116.8×50.8×34.6 mm. It has safety approvals according to IEC/UL/EN62368-1 and complies with IEC/EN60335-1.
Version with baseplate cooling
Technical data
- Input voltage range 90 to 264Vac
- 2 "x 4" open frame design, very compact
- Active PFC
- No load power consumption 150mW
- High efficiency 94%
- 120 watts with natural convection
- 150 watts with base plate
- Protective circuit: Permanent short circuit
- Complies with IEC/EN60335-1 and IEC60601-1
- EMI safety complies with Class I and Class II
- Application range 5000m
Product specifications
| Power | 150 W |
| Output voltage (VDC) | 48 V |
| Manufacturer | Cincon |
| Width | 50.8 mm |
| Protection class | Class I, Class II |
| Height | 34.6 mm |
| Length | 116.8 mm |
| Application | Budget, ITE/AV |
