130W medical open frame power supply 12V/10.8A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

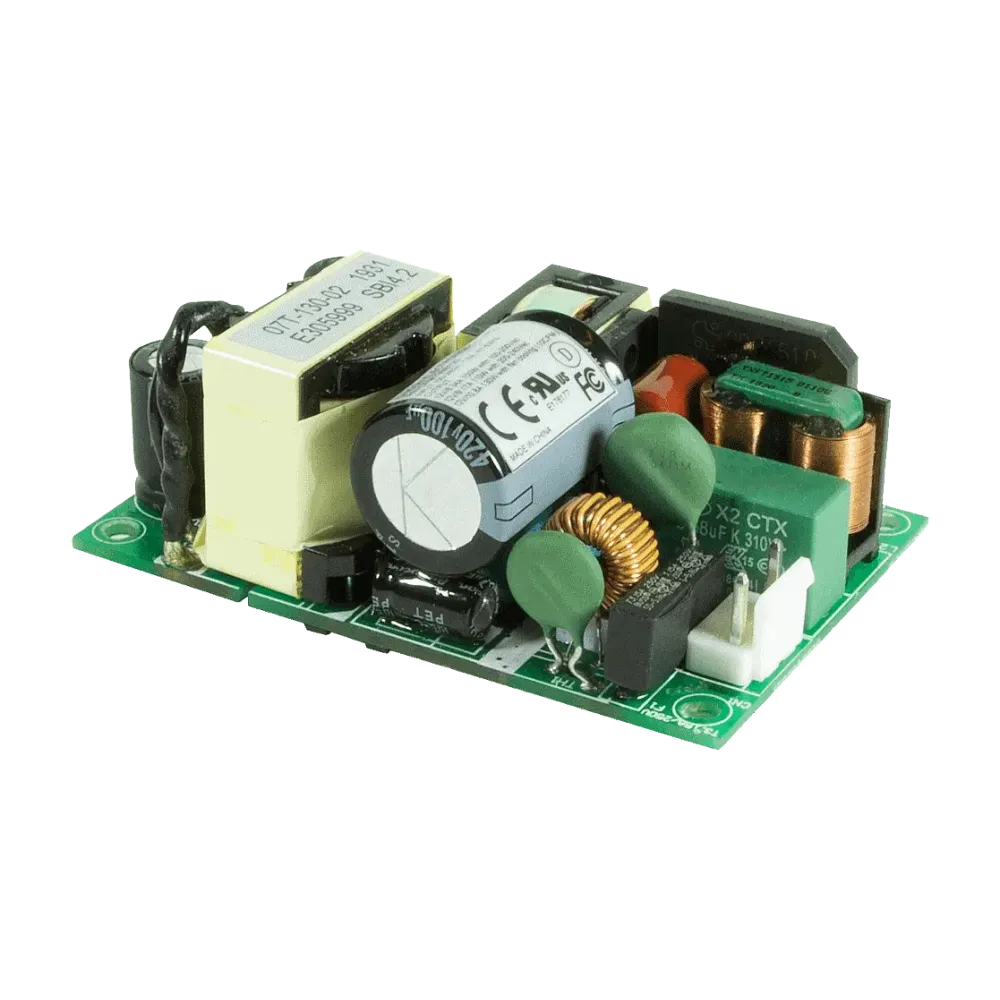

CFM130M120 from Cincon is a 2 MOPP, high power density, open frame AC/DC medical power supply that is both Class I and Class II compatible and provides 130W of power in a 2×3 inch (50.8×76.2×30.5 mm) footprint. It has safety approvals according to UL60601-1/IEC60601-1/EN60601-1 Ed.3.1 and complies with IEC/EN60335-1.

Technical data

Input voltage range 90 to 264Vac
No load power consumption <75mW
Class II
High efficiency 87%
Complies with IEC60601-1, EN60601-1 and ES60601-1, 2 MOPP
Complies with EN60335-1
Protective circuits: Permanent short circuit and overvoltage

Product specifications

Output voltage (VDC)	12 V
Height	30.5 mm
Manufacturer	Cincon
Width	50.8 mm
Application	Household, Medical
Power	130 W
Protection class	Class I, Class II
Standard size	2 x 3 inches
Length	76.2 mm
