About the product

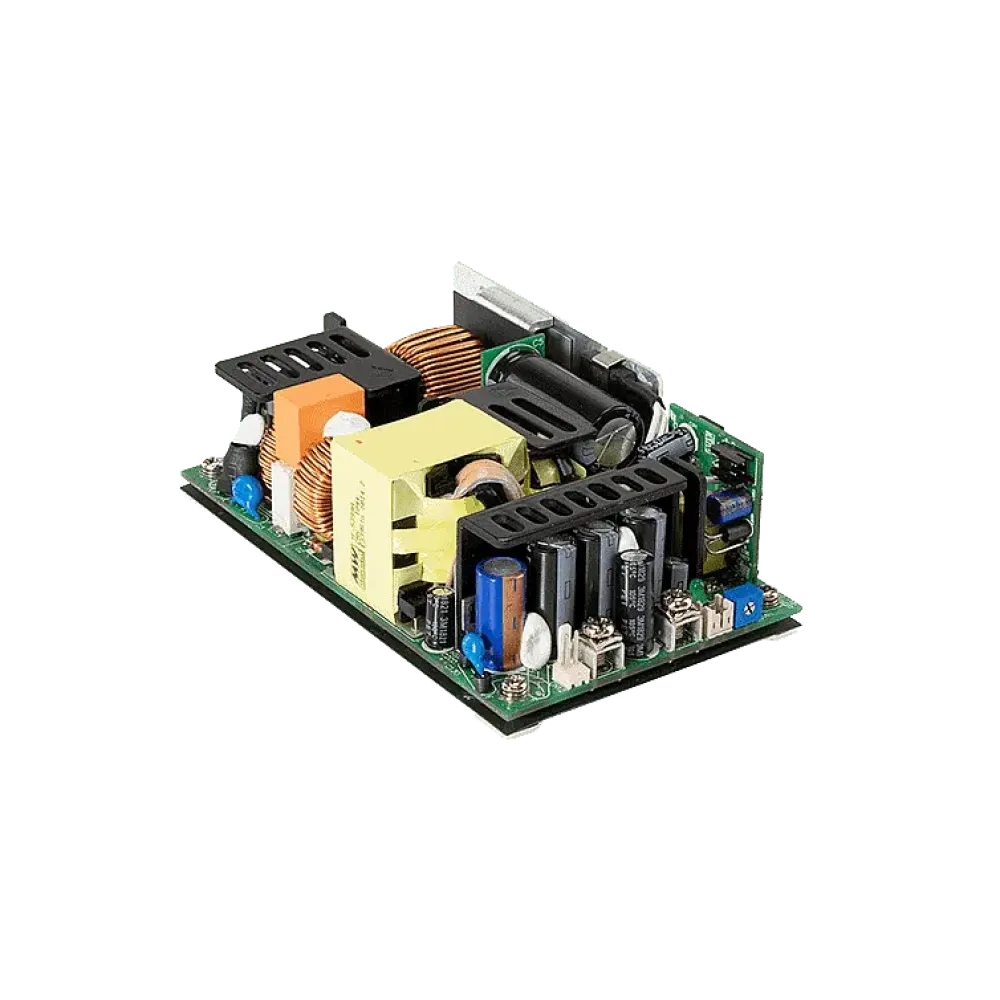

EPP-500-36 is a reliable open frame power supply unit with a very high power density. Without a fan, the power supply delivers up to 320W.
Technical data
- Input voltage 80 to 264Vac
- Approved for Class I and Class II applications
- No load power consumption 0.5W
- Efficiency up to 94
- Output signal for power o.k.
- Auxiliary output 5V / 0.6A
- Auxiliary output 12V/0.5A
- Short-circuit, overload, overvoltage and temperature protection
- Dimensions 127 x 76.2 x 40mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Control signals | Remote ON/OFF, Remote Sense |
| Protection class | Class I, Class II |
| Status signals | Power good signal |
| Width | 76.2 mm |
| Power | 500 W |
| Length | 127 mm |
| Standard size | 3 x 5 inches |
| Application | ITE/AV |
| Height | 40 mm |
| Output voltage (VDC) | 36 V |
| Additional functions | 5VDC auxiliary output, 12VDC auxiliary output, peak power |
