About the product

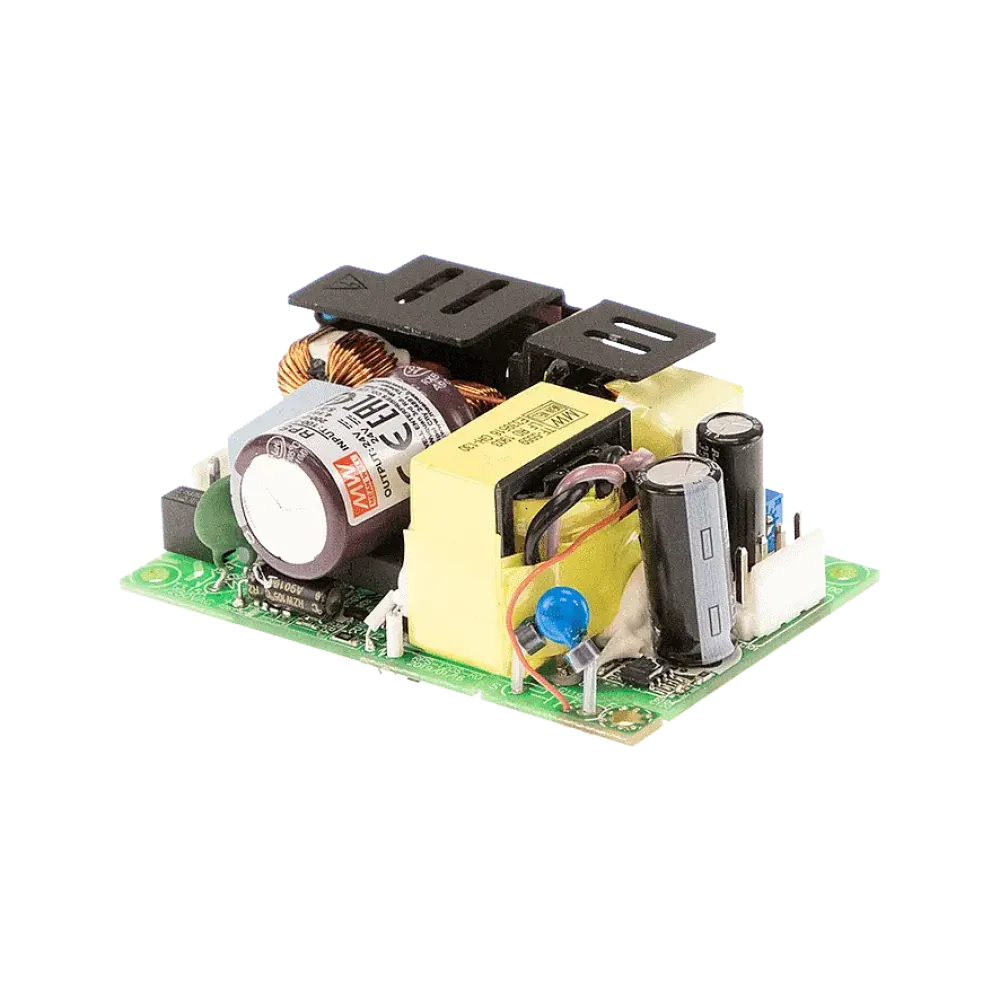

RPS-120S-15 is an extremely compact, medical open frame power supply unit with a very high power density.
Technical data
- Input voltage 80 to 264Vac
- 120W power without ventilation, 150W peak load for 10 seconds
- Approved for Class I (with protective earth) and Class II (without protective earth) applications
- No load power consumption 0.5W
- High efficiency up to 94
- Medical approvals with 2xMOPP level
- Very low leakage current (150µA)
- Temperature range -30°C to +85°C
- Short-circuit, overload, overvoltage and temperature protection
- Dimensions 76.2 x 50.8 x 28mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Length | 76.2 mm |
| Standard size | 2 x 3 inches |
| Protection class | Class I, Class II |
| Application | Medical |
| Width | 50.8 mm |
| Height | 28 mm |
| Output voltage (VDC) | 15 V |
| Power | 120 W |
| Additional functions | Peak Power |
