About the product

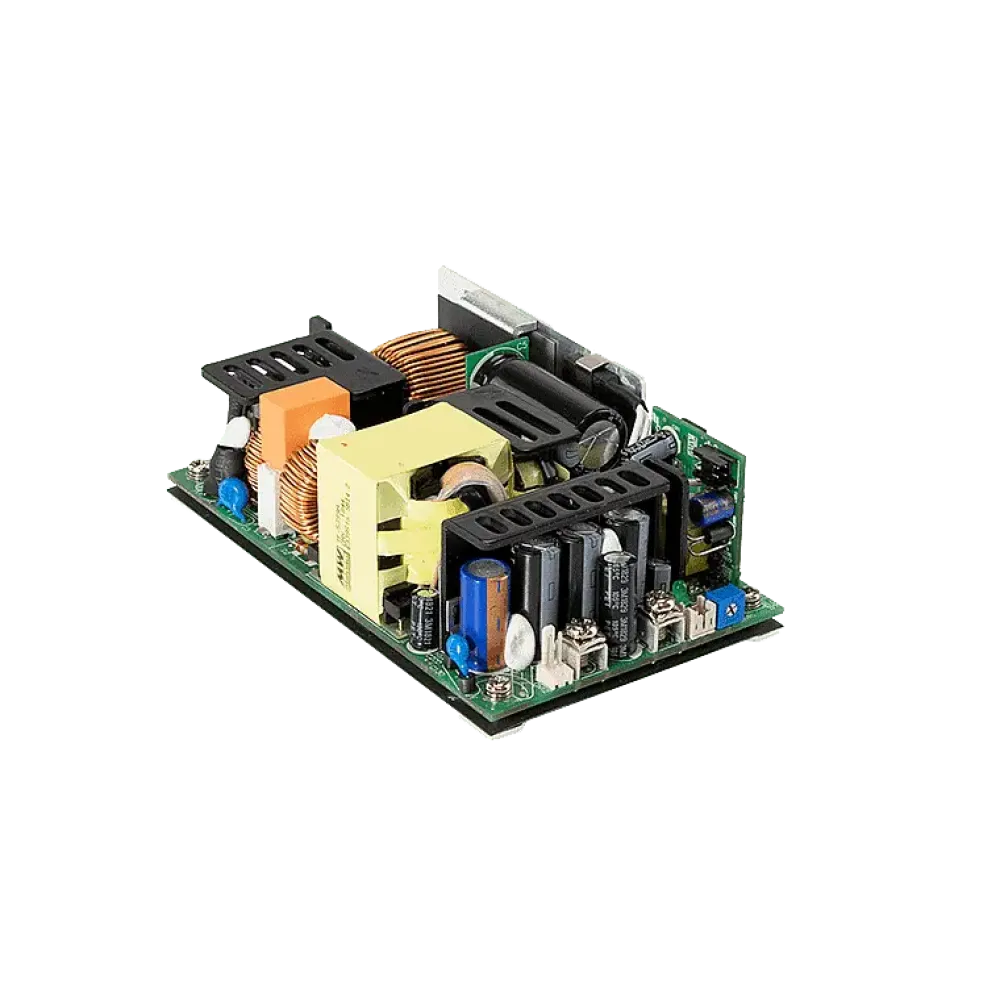

RPS-500-24 is a reliable, medical open frame power supply unit with a very high power density. With fan, the power supply delivers up to 500W.
Technical data
- Input voltage 80 to 264Vac
- 320W without fan, 500W with 25CFM ventilation
- Approved for Class I and Class II applications
- No load power consumption 0.5W
- Efficiency up to 94
- Output signal for power o.k.
- Auxiliary output 5V / 0.6A
- Auxiliary output 12V/0.5A
- Short-circuit, overload, overvoltage and temperature protection
- Approvals: ANSI/AAMI ES60601-1 and IEC/EN60601-1 with 2xMOPP level
- Dimensions 127 x 76.2 x 40mm (L x W x H)
Product specifications
| Output voltage (VDC) | 24 V |
| Control signals | Remote ON/OFF, Remote Sense |
| Protection class | Class I, Class II |
| Status signals | Power good signal |
| Width | 76.2 mm |
| Power | 500 W |
| Length | 127 mm |
| Standard size | 3 x 5 inches |
| Application | Medical |
| Height | 40 mm |
| Manufacturer | MEAN WELL |
| Additional functions | 5VDC auxiliary output, 12VDC auxiliary output, peak power |
