About the product

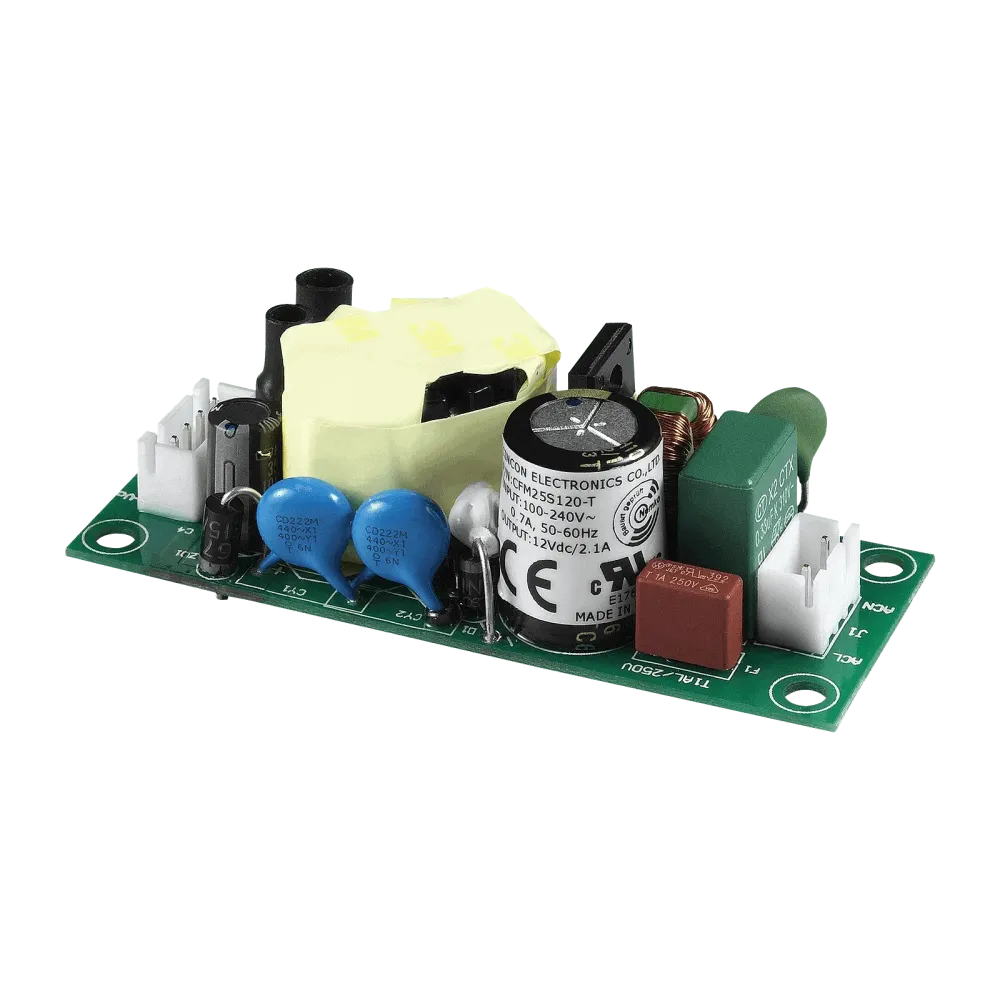

CFM25S family is a Class II AC/DC power supply with high power density and compact dimensions. Open frame version.
Technical data
- Input voltage range 90 to 264Vac
- Efficiency 87%
- No load power consumption <0.1W
- Protective circuit: short circuit and overvoltage
- Complies with EN55032 Class B and CIRSS/FCC Class B
- Complies with IEC62368-1, UL62368-1 and IEC/EN60335-1, IEC61558-1
- Peak Power (2x Rated Power)
- Class II
- Dimensions 70.5 x 27.94 x 23mm (L x W x H)
Product specifications
| Power | 25 W |
| Output voltage (VDC) | 12 V |
| Height | 23 mm |
| Manufacturer | Cincon |
| Protection class | Class II |
| Length | 70.5 mm |
| Width | 27.94 mm |
| Application | Budget, ITE/AV |
| Additional functions | Peak Power |
