About the product

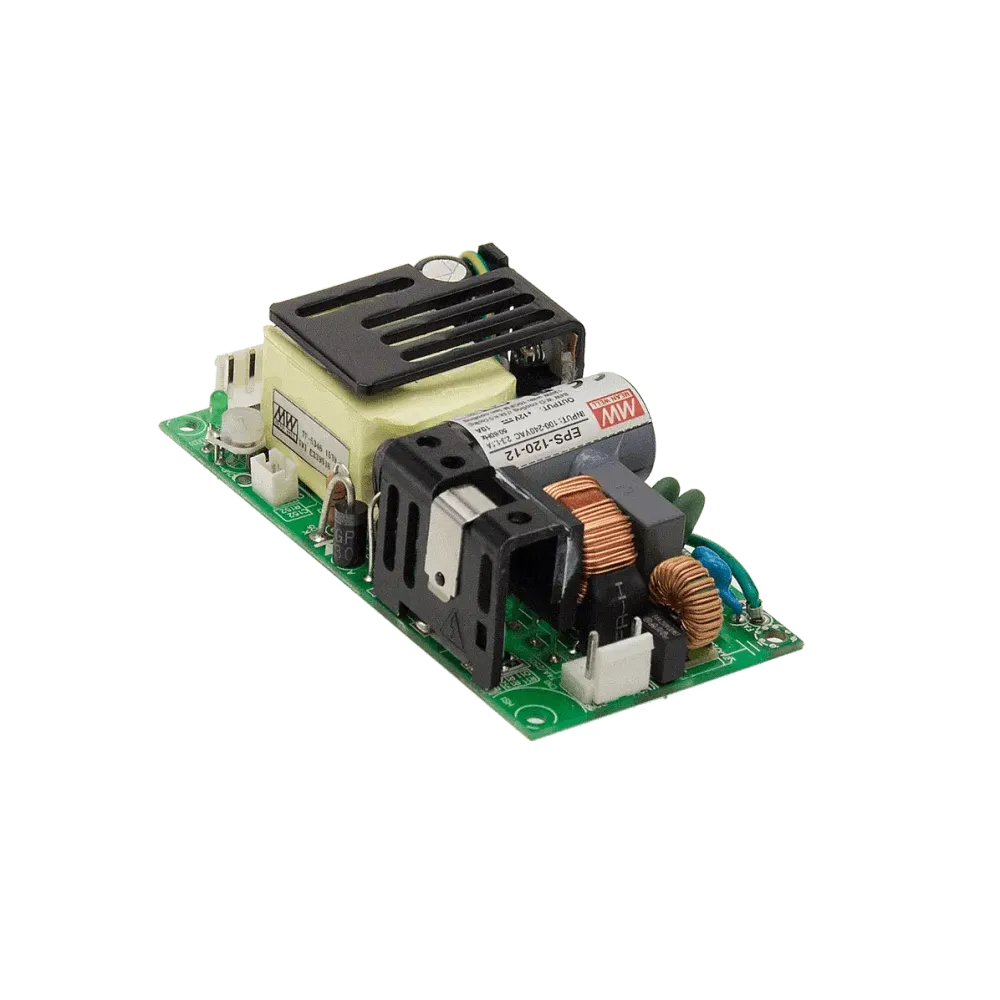

EPS-120-48 is a reliable open frame power supply unit. Without a fan, the power supply delivers up to 84W.
Technical data
- Input voltage 80 to 264Vac
- No load power consumption <0.3W
- Very compact design
- LED indicator for power-on
- Short-circuit, overload, overvoltage and temperature protection
- Dimensions 101.6 x 50.8 x 29mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Protection class | Class I, Class II |
| Width | 50.8 mm |
| Length | 101.6 mm |
| Standard size | 2 x 4 inches |
| Application | ITE/AV |
| Height | 29 mm |
| Power | 120 W |
| Output voltage (VDC) | 48 V |
| Additional functions | 12VDC auxiliary output, peak power |
