About the product

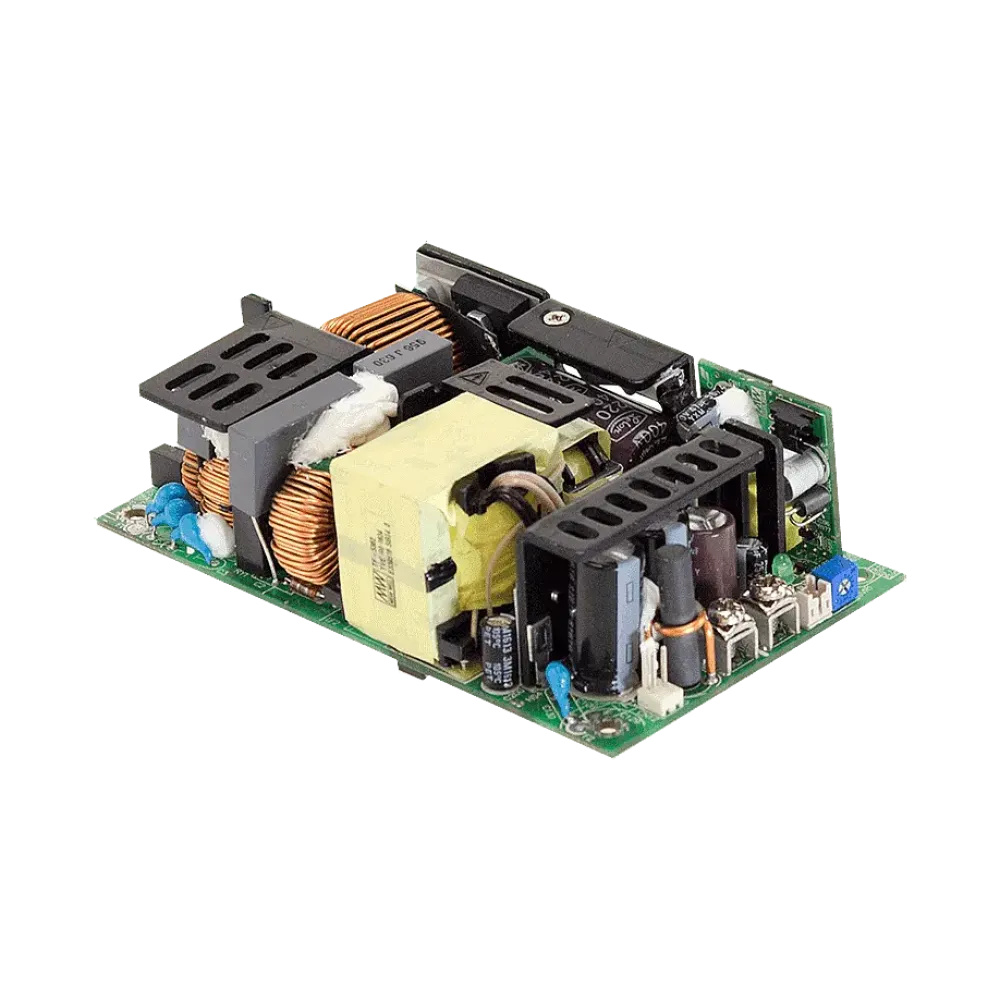

MEAN WELL RPS-400-24 is a 400W medical power supply with high power density on a 3×5 inch footprint. Without 25CFM forced ventilation 250W are delivered
Technical data
- Input voltage 80 to 264Vac
- No load power consumption 0.5W
- 2x MOPP (insulation: primary to secondary)
- Suitable for BF applications
- 400 watts of power with 25CFM forced ventilation
- 250W with convection
- Remote Sense and Remote ON/OFF integrated
- Auxiliary voltage 5V and fan output 12V
- Power Good Signal
- Short-circuit, overload, overvoltage and overtemperature protection
- Dimensions 127 x 76.2 x 35mm (L x W x H)
Product specifications
| Output voltage (VDC) | 24 V |
| Control signals | Remote ON/OFF, Remote Sense |
| Protection class | Class I, Class II |
| Status signals | Power good signal |
| Width | 76 mm |
| Length | 127 mm |
| Standard size | 3 x 5 inches |
| Application | Medical |
| Power | 400 W |
| Height | 35 mm |
| Manufacturer | MEAN WELL |
| Additional functions | 5VDC auxiliary output, 12VDC auxiliary output, peak power |
