About the product

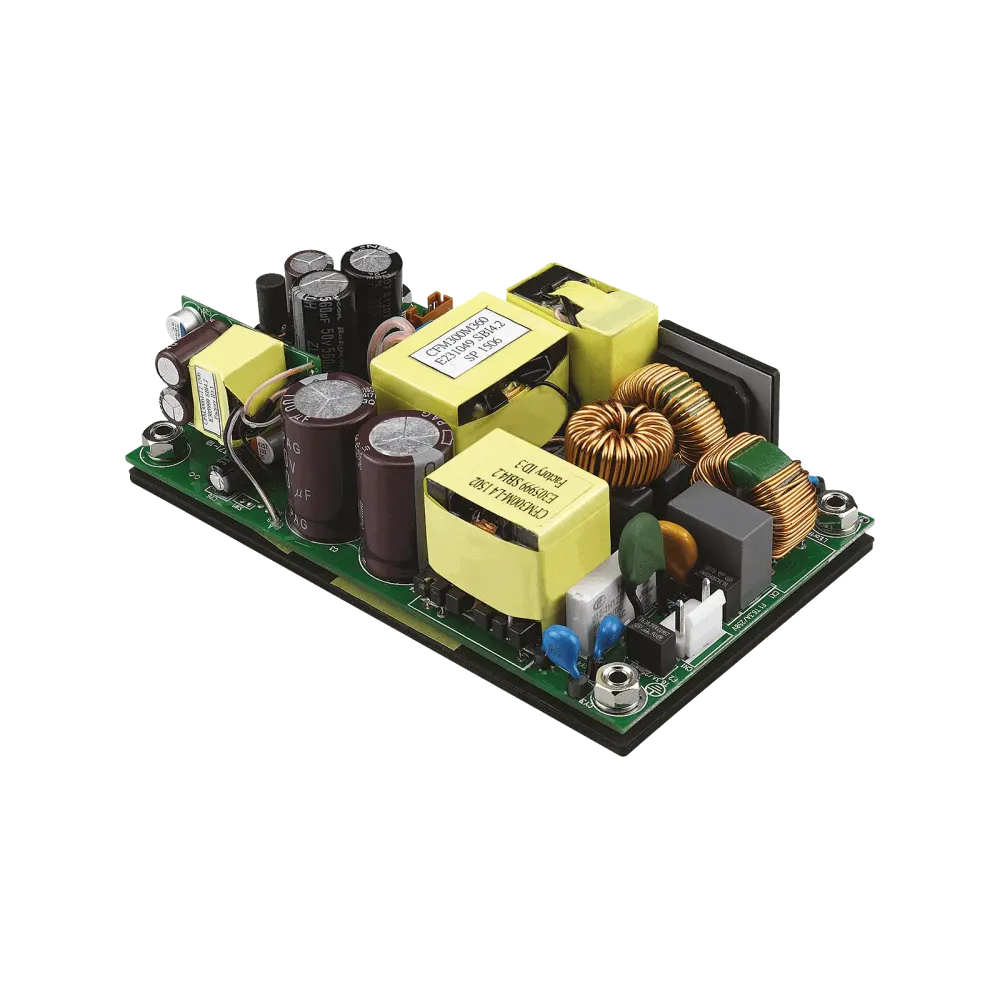

CFM300M480 from Cincon. A medical power supply unit with high power density, up to 300 watts on a 5x 3 footprint.
Technical data
- Universal input range 85.. 264Vac
- High efficiency 93.5%
- 3" x 5" compact size
- 200W with natural convection
- 300W fan-cooled
- No load power consumption <0.3 Watt
- 12V fan output
- 5V stand-by output
- Continuous short-circuit protection
- Overtemperature protection
- Operating altitude 3000m
- Complies with EN55032 (Class B)
- IEC/EN/UL60601-1 approval
Product specifications
| Output voltage (VDC) | 48 V |
| Control signals | Remote ON/OFF, Remote Sense |
| Width | 76 mm |
| Length | 127 mm |
| Standard size | 3 x 5 inches |
| Application | Medical |
| Status signals | DC OK signal |
| Protection class | Class I |
| Manufacturer | Cincon |
| Power | 300 W |
| Height | 35 mm |
| Additional functions | 5VDC auxiliary output, 12VDC auxiliary output |
