About the product

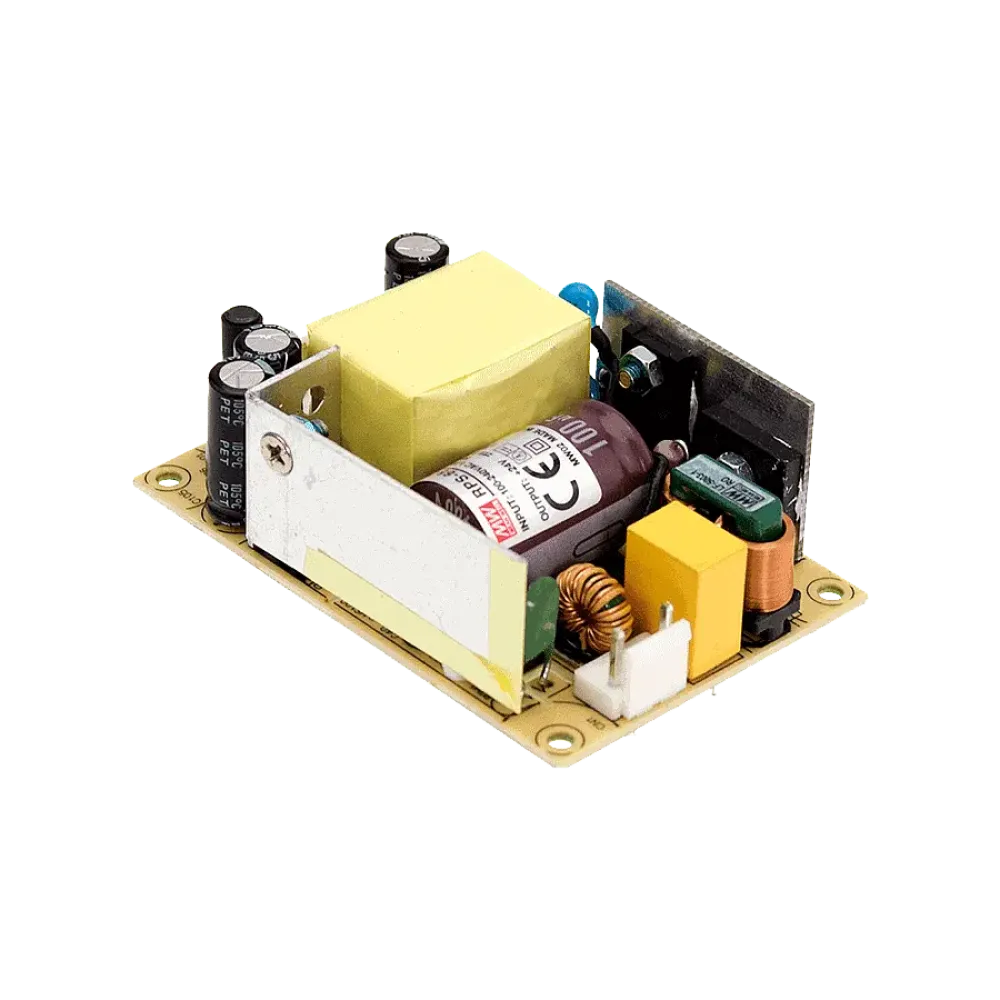

MEAN WELL RPS-45-12 is an open frame power supply with 45W output in compact 76.2×50.8x24mm dimensions.
Technical data
- Input voltage 80 to 264Vac
- No load power consumption 0.1W
- Peak load for 10 sec.
- 2x MOPP (insulation: primary to secondary)
- Suitable for BF applications
- Short-circuit, overload and overvoltage protection
- Dimensions 76.2 x 50.8 x 24mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Length | 76.2 mm |
| Standard size | 2 x 3 inches |
| Application | Medical |
| Width | 50.8 mm |
| Protection class | Class II |
| Height | 24 mm |
| Power | 45 W |
| Output voltage (VDC) | 12 V |
| Additional functions | Peak Power |
Data sheets
