About the product

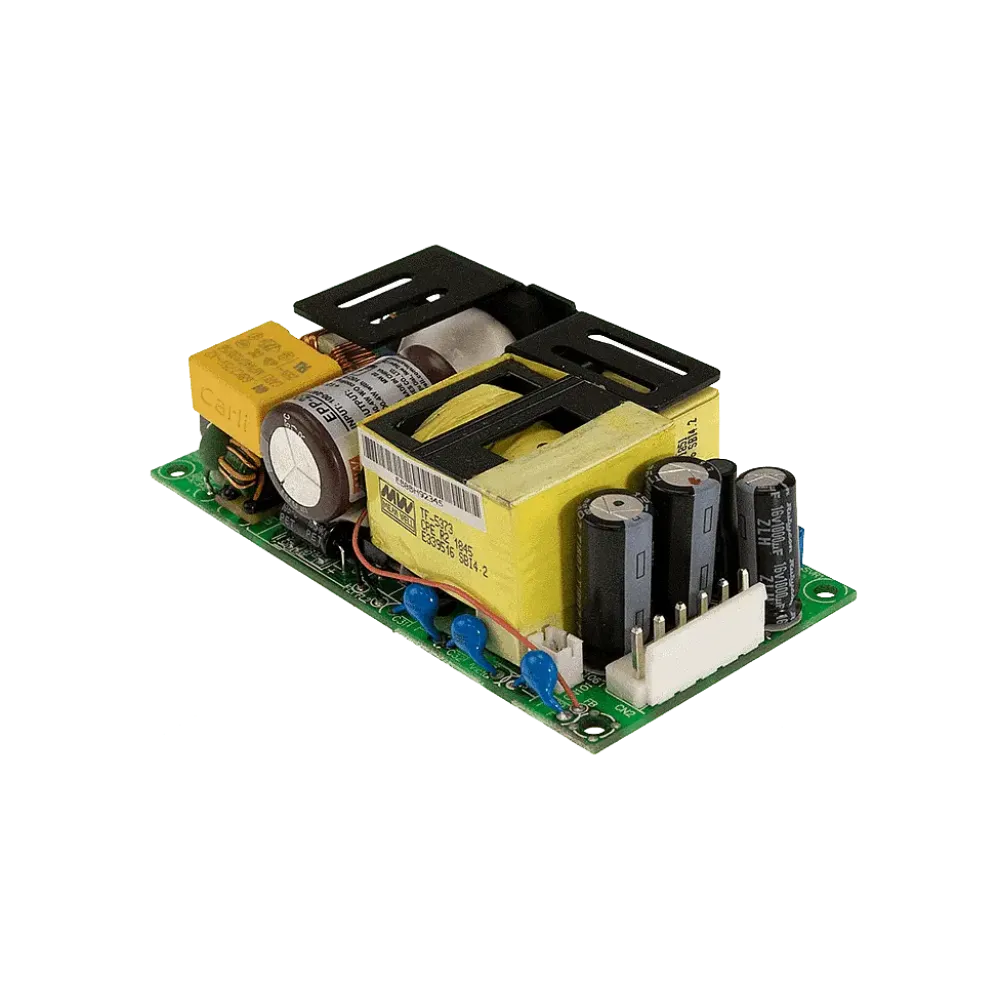

EPP-200-48 is an extremely compact open frame power supply unit on a 4 x 2 footprint with very high power density.
Technical data
- Input voltage 80 to 264Vac
- 140W convection
- 200W with 10CFM fan
- No load power consumption 0.5W
- Built-in power factor correction >0.95
- LED indicator for power-on
- Auxiliary output 12V/0.5A
- Short-circuit, overload, overvoltage and temperature protection
- Dimensions 101.6 x 50.8 x 29mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Protection class | Class I, Class II |
| Width | 50.8 mm |
| Length | 101.6 mm |
| Standard size | 2 x 4 inches |
| Application | ITE/AV |
| Height | 29 mm |
| Power | 200 W |
| Output voltage (VDC) | 48 V |
| Additional functions | 12VDC auxiliary output |
