About the product

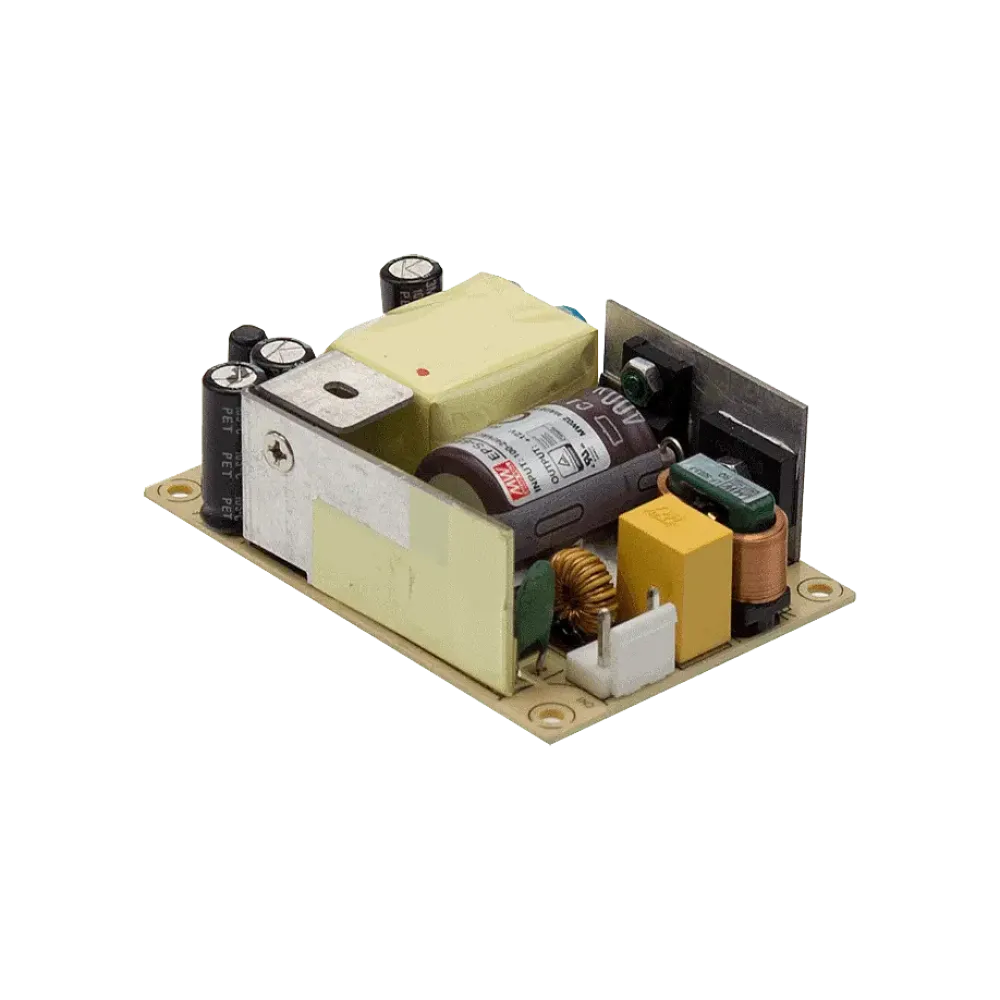

EPS-45S-5 is a compact open frame power supply unit on a 3 x 2 footprint with high power density.
Technical data
- Input voltage 80 to 264Vac
- No load power consumption <0.1W
- Very compact design
- LED indicator for power-on
- Peak load for 10 sec.
- Short-circuit, overload and overvoltage protection
- Dimensions 76.2 x 50.8 x 24mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Length | 76.2 mm |
| Standard size | 2 x 3 inches |
| Width | 50.8 mm |
| Protection class | Class II |
| Application | ITE/AV |
| Output voltage (VDC) | 5 V |
| Height | 24 mm |
| Power | 40 W |
| Additional functions | Peak Power |
