About the product

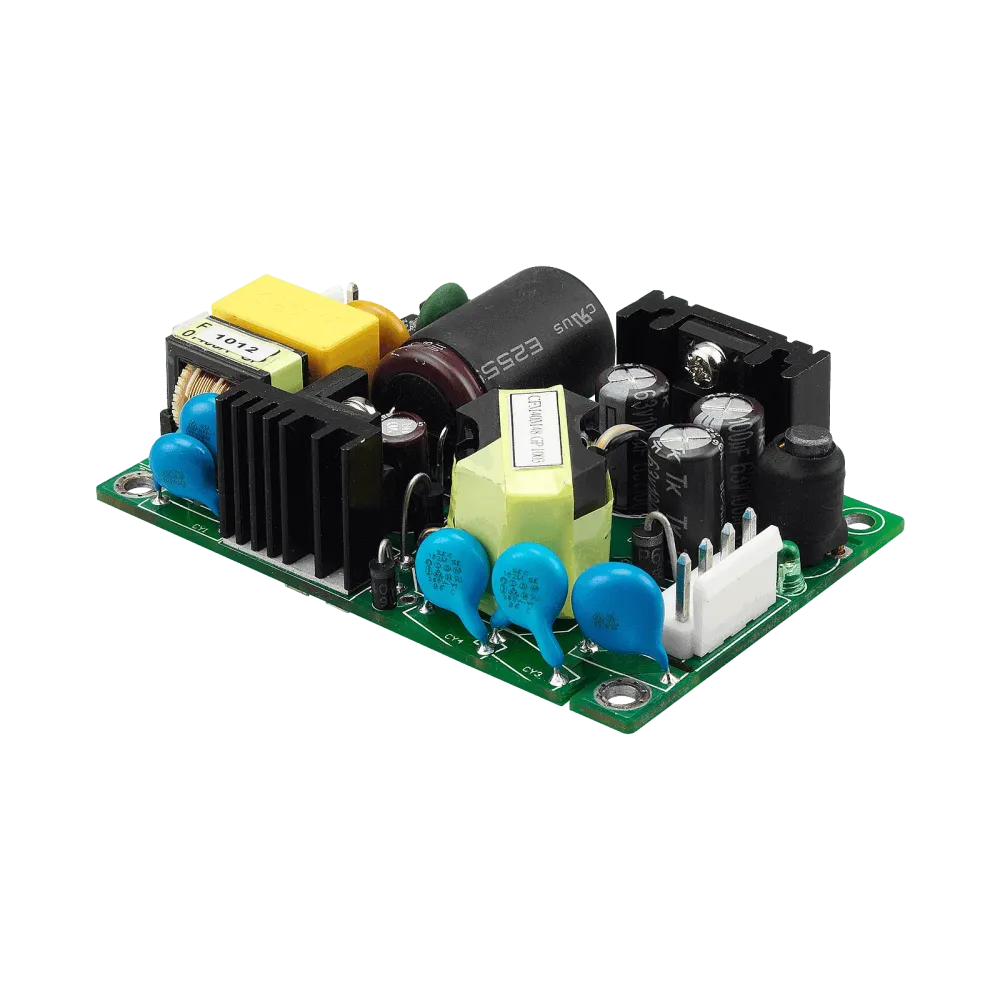

CFM40M033 is a Medical Class I AC/DC power supply unit with high power density and compact dimensions.
Technical data
- Input voltage 90 to 264Vac
- Efficiency 88%
- No load power consumption <0.3W
- Short-circuit and overvoltage protection
- Medical approval according to UL/IEC/EN60601-1
- Industry approval according to UL/IEC/EN60950-1
- EMC according to EN55011 and EN55022 class B
- Dimensions 76.2 x 50.8 x 20.6mm (L x W x D)
Product specifications
| Power | 40 W |
| Output voltage (VDC) | 15 V |
| Manufacturer | Cincon |
| Application | ITE/AV, Medical |
| Protection class | Class I |
| Width | 50.8 mm |
| Standard size | 2 x 3 inches |
| Length | 76.2 mm |
| Height | 23.1 mm |
