About the product

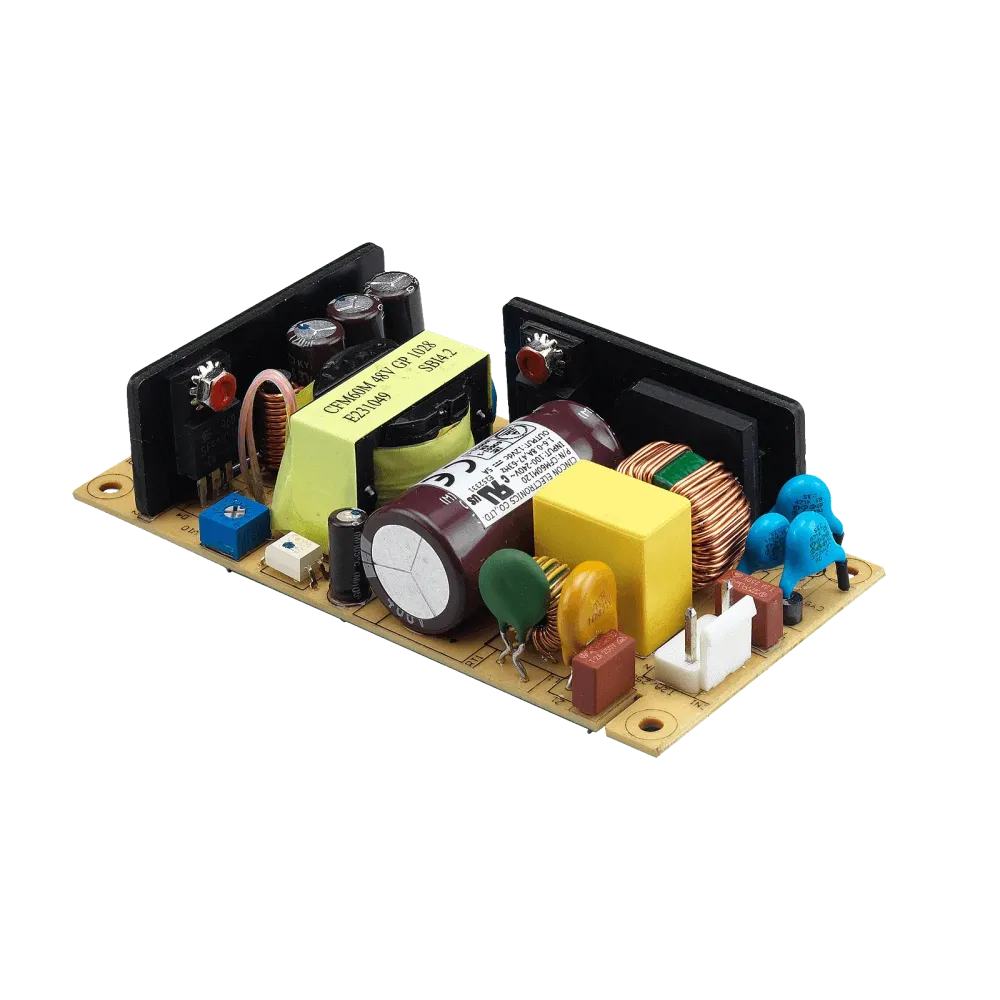

Cincon CFM60M150 is a 60W medical power supply unit.
Technical data
- Input voltage 90 to 264Vac
- Efficiency 90%
- No load power consumption <0.5W
- Short-circuit and overvoltage protection
- Medical approval UL/IEC/EN60601-1
- EMC according to EN55011 and EN55022 class B
- Dimensions 101.6 x 50.8 x 24.44mm (L x W x D)
Product specifications
| Power | 60 W |
| Output voltage (VDC) | 15 V |
| Manufacturer | Cincon |
| Height | 28 mm |
| Application | ITE/AV, Medical |
| Protection class | Class I |
| Standard size | 2 x 4 inches |
| Length | 101.6 mm |
| Width | 50.8 mm |
Data sheets
