About the product

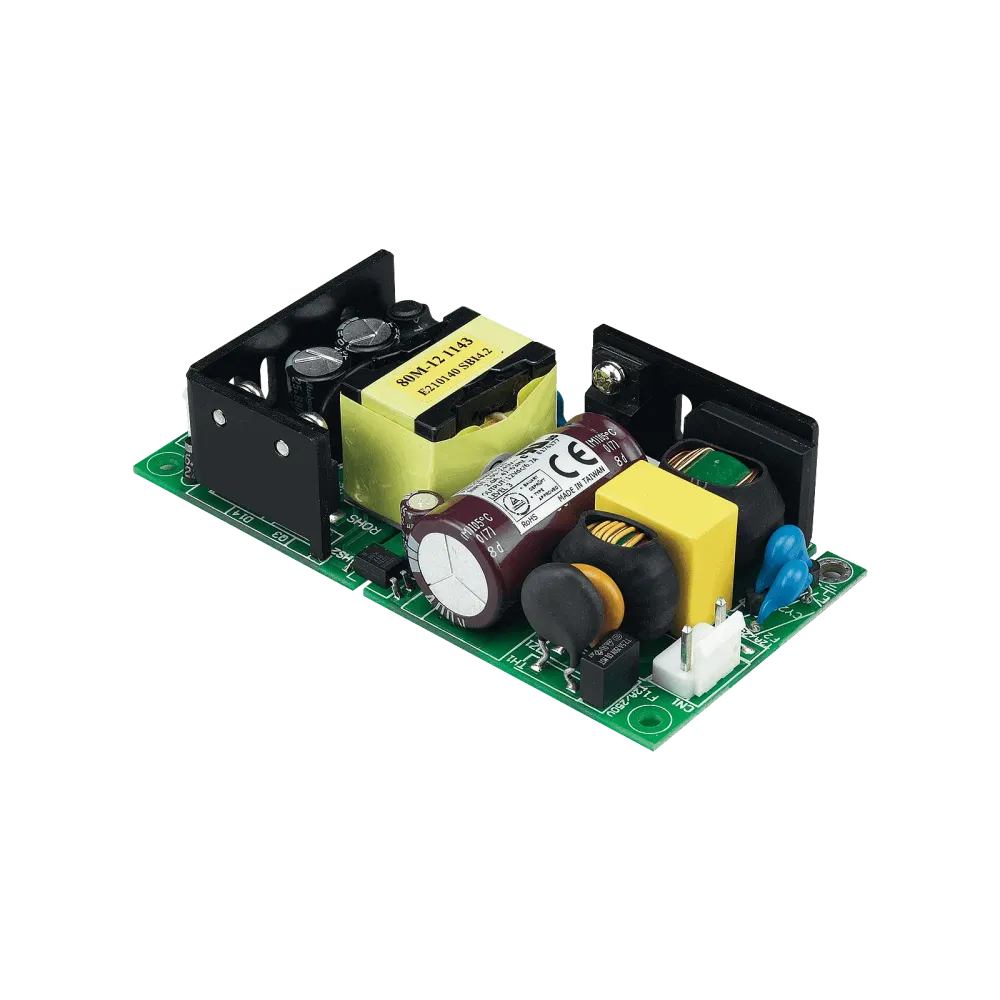

Cincon CFM80S150 is an ITE/AV power supply unit built on a 4x2 footprint.
Technical data
- Input voltage 90 to 264Vac
- Efficiency 90%
- No load power consumption <0.5W
- Short-circuit and overvoltage protection
- Industry approval UL/IEC/EN62368-1
- EMC according to EN55022 class B and CISPR/FCC class B
- Dimensions 101.6 x 50.8 x 24.6mm (L x W x D)
Product specifications
| Power | 80 W |
| Output voltage (VDC) | 15 V |
| Manufacturer | Cincon |
| Application | ITE/AV |
| Protection class | Class I |
| Standard size | 2 x 4 inches |
| Length | 101.6 mm |
| Width | 50.8 mm |
| Height | 27.1 mm |
