About the product

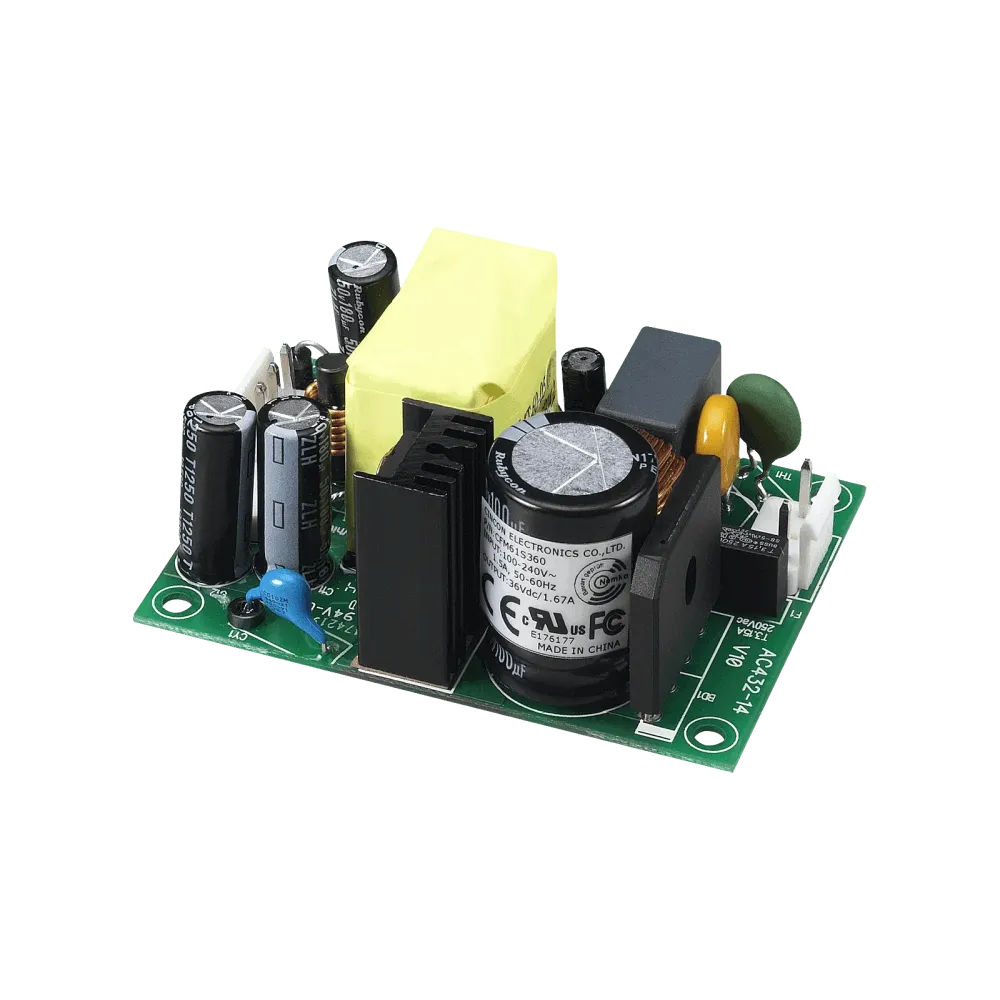

CFM61S240-T is a Class II AC/DC power supply unit with high power density and compact dimensions. Open frame version.
Technical data
- Wide input voltage range 90..264Vac
- High efficiency up to 90%
- Complies with EN55032 Class B and CIRSS/FCC Class B
- Approval IEC62368-1, UL62368-1 and EN62368-1
- Protection circuit : Permanent short-circuit resistance and overvoltage
- Class II
Product specifications
| Output voltage (VDC) | 24 V |
| Power | 60 W |
| Manufacturer | Cincon |
| Application | ITE/AV |
| Protection class | Class II |
| Width | 50.8 mm |
| Length | 68.6 mm |
| Height | 32.8 mm |
