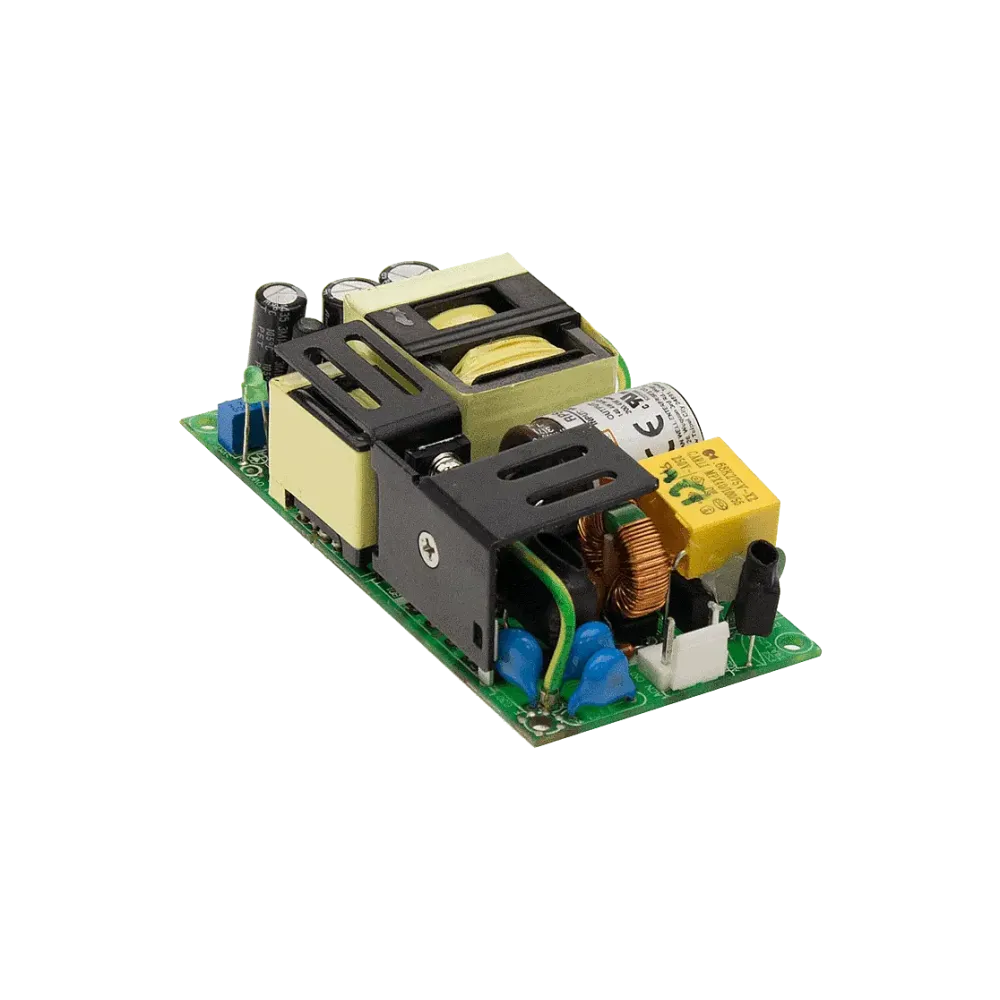

200W medical open frame power supply 27V/7.5A

The highly reliable 200W power supply units of the RPS-200 series for medical applications are built on a standard footprint of 4×2 inches. With an efficiency of 95% and an idle consumption of less than 0.5W, the power consumption of the application is optimized. RPS-200 is approved for protection class I (with earth) and protection class II (without earth). A low leakage current of less than 130µA and medical approvals for patient contact (2XMOPP) enable use in medical systems with BF rating.

Technical data

• Input voltage 80 to 264Vac
• No load power consumption <0.5W
• 200W power with 10CFM forced ventilation
• 140W power with convection
• 2x MOPP (insulation: primary to secondary)
• Suitable for BF applications
• Short-circuit, overload, overvoltage and overtemperature protection
• Dimensions 101.6 x 50.8 x 29mm (L x W x H)
