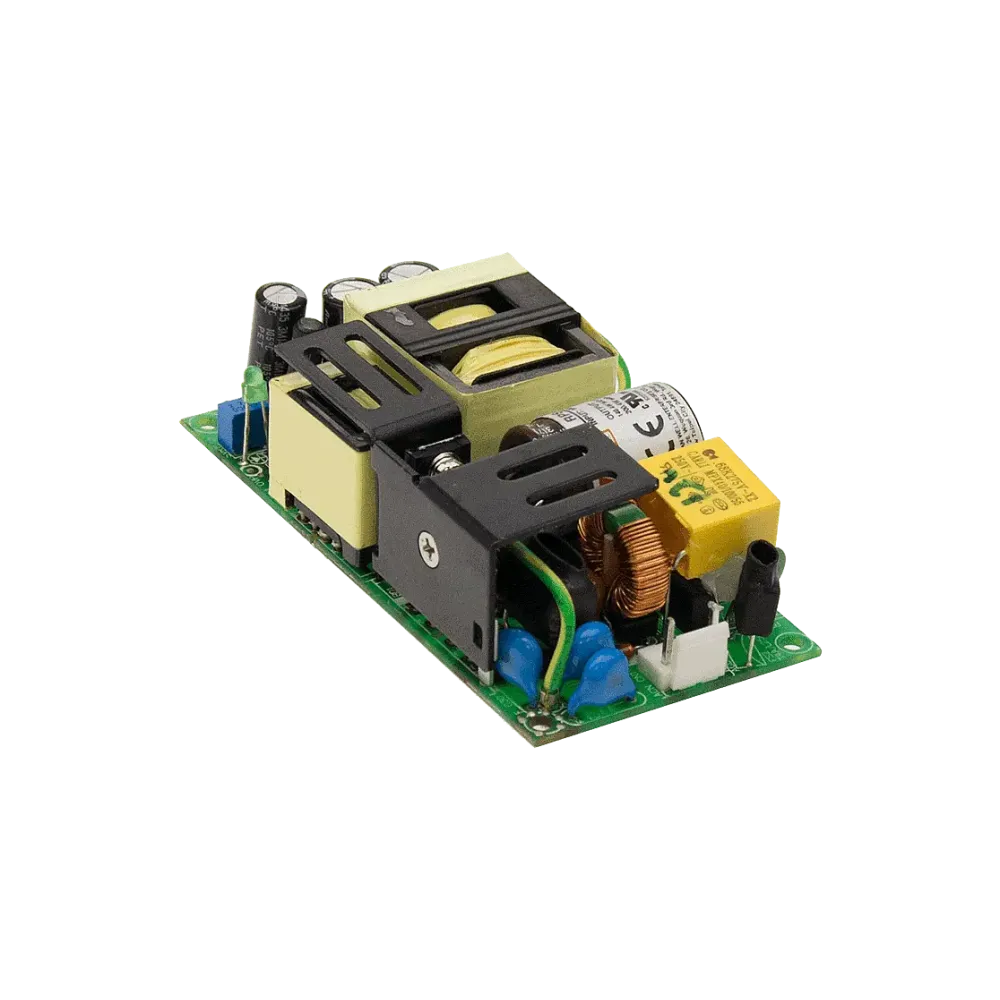

200W medical open frame power supply 12V/16.7A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

The highly reliable 200W power supply units of the RPS-200 series for medical applications are built on a standard footprint of 4×2 inches. With an efficiency of 95% and an idle consumption of less than 0.5W, the power consumption of the application is optimized. RPS-200 is approved for protection class I (with earth) and protection class II (without earth). A low leakage current of less than 130µA and medical approvals for patient contact (2XMOPP) enable use in medical systems with BF rating.

Technical data

Input voltage 80 to 264Vac
No load power consumption <0.5W
200W power with 10CFM forced ventilation
140W power with convection
2x MOPP (insulation: primary to secondary)
Suitable for BF applications
Short-circuit, overload, overvoltage and overtemperature protection
Dimensions 101.6 x 50.8 x 29mm (L x W x H)

Product specifications

Manufacturer	MEAN WELL
Protection class	Class I, Class II
Application	Medical
Width	50.8 mm
Length	101.6 mm
Standard size	2 x 4 inches
Height	29 mm
Power	200 W
Output voltage (VDC)	12 V
Additional functions	12VDC auxiliary output
