About the product

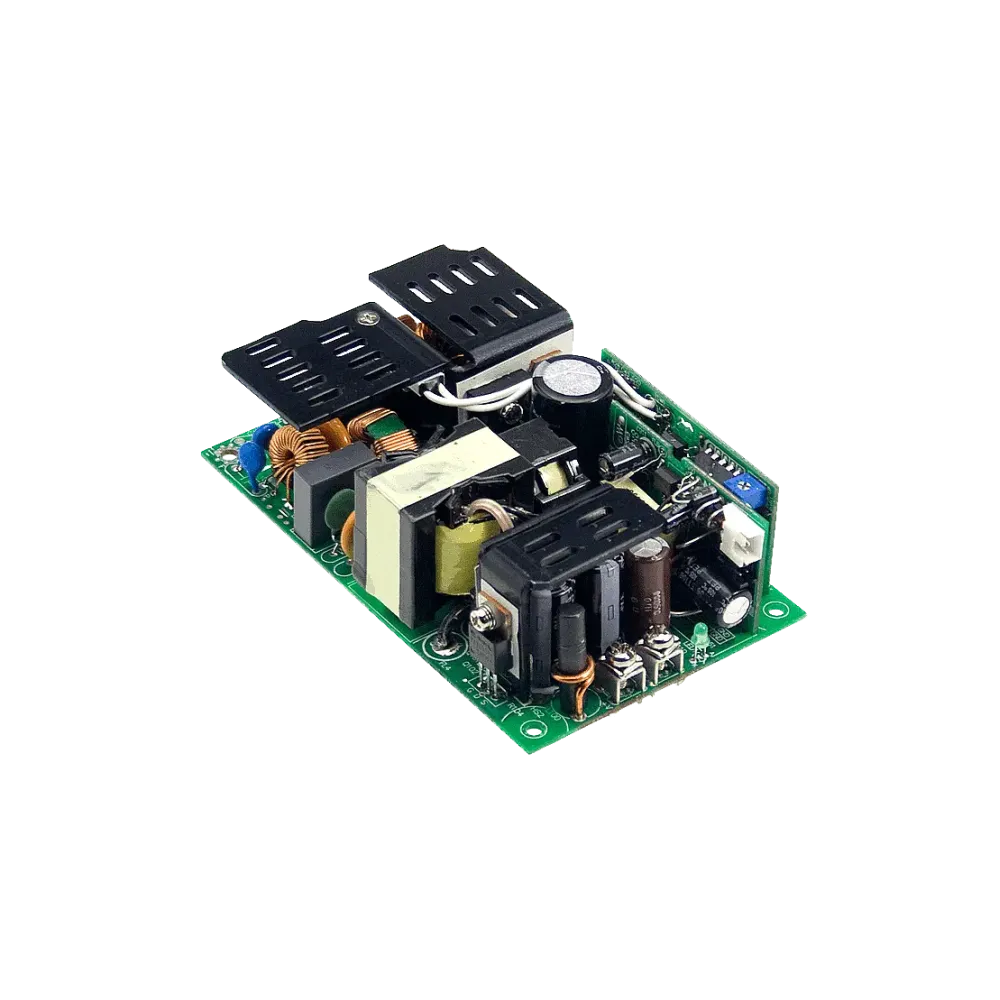

MEAN WELL EPP-300-48 is a 300W power supply unit with high power density on a footprint of 3×5 inches. Without 20.5CFM forced ventilation 200W are supplied.
Technical data
- Input voltage 90 to 264Vac
- 200W convection
- 300W with 20.5CFM fan
- No load power consumption <0.5W
- Built-in power factor correction >0.93
- Output signal for Power OK
- Auxiliary output 12V/0.3A
- Short-circuit, overload, overvoltage and temperature protection
- Dimensions 127 x 76.2 x 35mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Control signals | Remote ON/OFF, Remote Sense |
| Status signals | Power good signal |
| Width | 76.2 mm |
| Length | 127 mm |
| Standard size | 3 x 5 inches |
| Protection class | Class I |
| Application | ITE/AV |
| Power | 300 W |
| Height | 35 mm |
| Output voltage (VDC) | 48 V |
| Additional functions | 5VDC auxiliary output, 12VDC auxiliary output |
