About the product

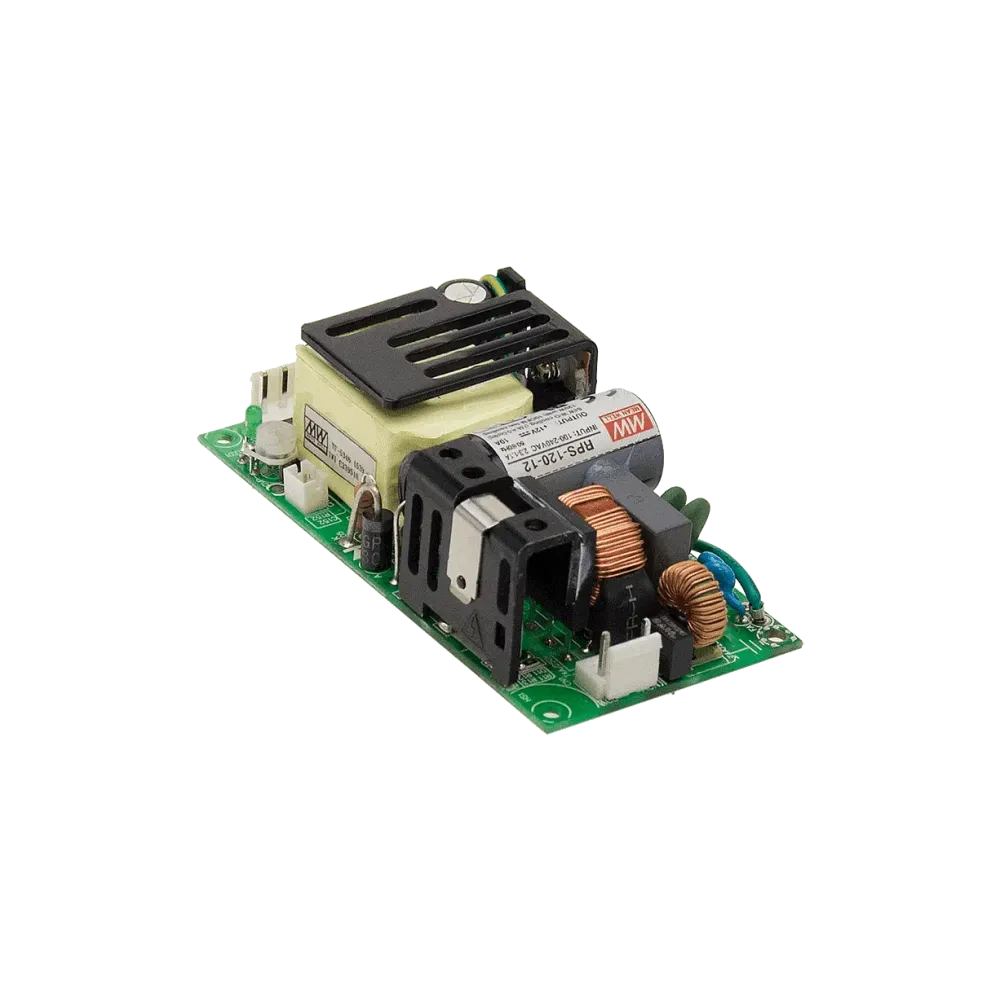

RPS-120-15 is a reliable open frame power supply unit with 2xMOPP medical approval. Without a fan, the power supply delivers up to 84W.
Technical data
- Input voltage 80 to 264Vac
- No load power consumption <0.3W
- 120W power with 10CFM forced ventilation
- 84W power with convection
- 2x MOPP (insulation: primary to secondary)
- Suitable for BF applications
- Short-circuit, overload, overvoltage and overtemperature protection
- Dimensions 101.6 x 50.8 x 29mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Power | 120 W |
| Output voltage (VDC) | 15 V |
| Height | 29 mm |
| Length | 101.6 mm |
| Width | 50.8 mm |
| Application | Medical |
| Protection class | Class I, Class II |
| Additional functions | 12VDC auxiliary output |
