About the product

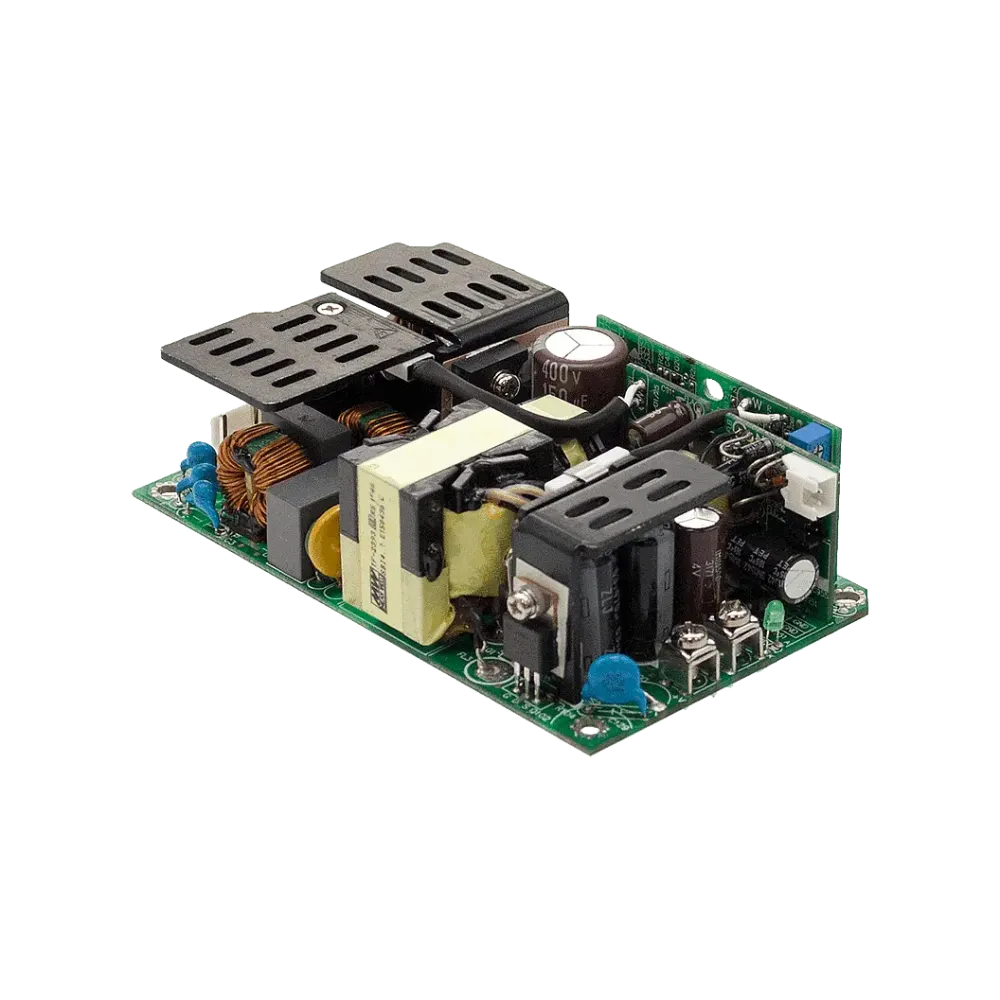

MEAN WELL RPS-300-24 is a 300W medical power supply with high power density on a 3×5 inch footprint. Without 25CFM forced ventilation 200W are supplied
Technical data
- Input voltage 90 to 264Vac
- 300W power with 20.5CFM forced ventilation
- 200W with convection
- Built-in power factor correction
- No load power consumption <0.5W
- Built-in auxiliary output 12V/0.5A
- Output signal for power o.k.
- 2x MOPP (insulation: primary to secondary)
- Suitable for BF applications
- Short-circuit, overload, overvoltage and overtemperature protection
- Dimensions 127 x 76.2 x 35mm (L x W x H)
Product specifications
| Output voltage (VDC) | 24 V |
| Width | 76.2 mm |
| Control signals | Remote ON/OFF |
| Length | 127 mm |
| Standard size | 3 x 5 inches |
| Application | Medical |
| Protection class | Class I |
| Power | 300 W |
| Height | 35 mm |
| Manufacturer | MEAN WELL |
| Additional functions | 5VDC auxiliary output, 12VDC auxiliary output |
