About the product

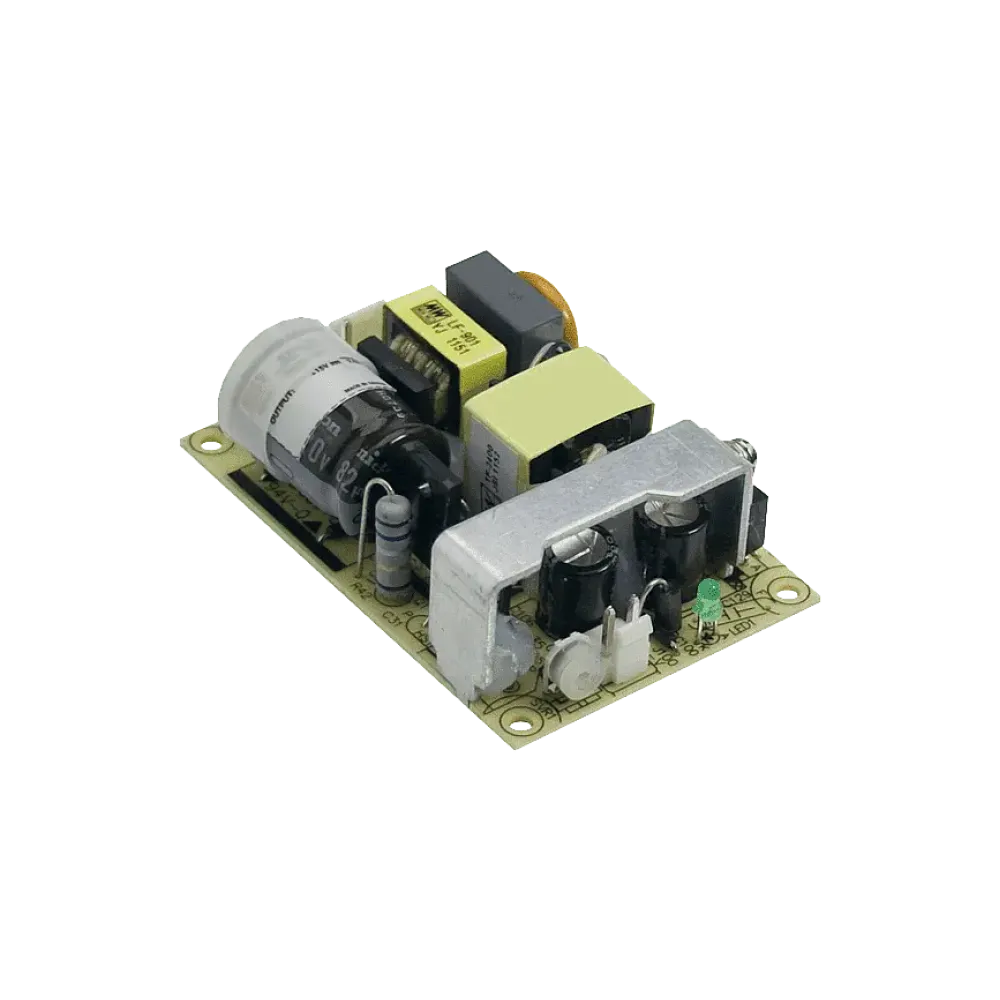

EPS-35-7.5 is a 35 Watt open frame switching power supply for ITE applications.
Technical data
- Input voltage 85 to 264Vac
- No load power consumption <0.3W
- Very compact design
- LED indicator for power-on
- Peak load for 10 sec.
- Short-circuit, overload and overvoltage protection
- Dimensions 76.2 x 50.8 x 24mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Length | 76.2 mm |
| Standard size | 2 x 3 inches |
| Output voltage (VDC) | 7.5 V |
| Width | 50.8 mm |
| Protection class | Class I |
| Application | ITE/AV |
| Height | 24 mm |
| Power | 35 W |
| Additional functions | Peak Power |
