About the product

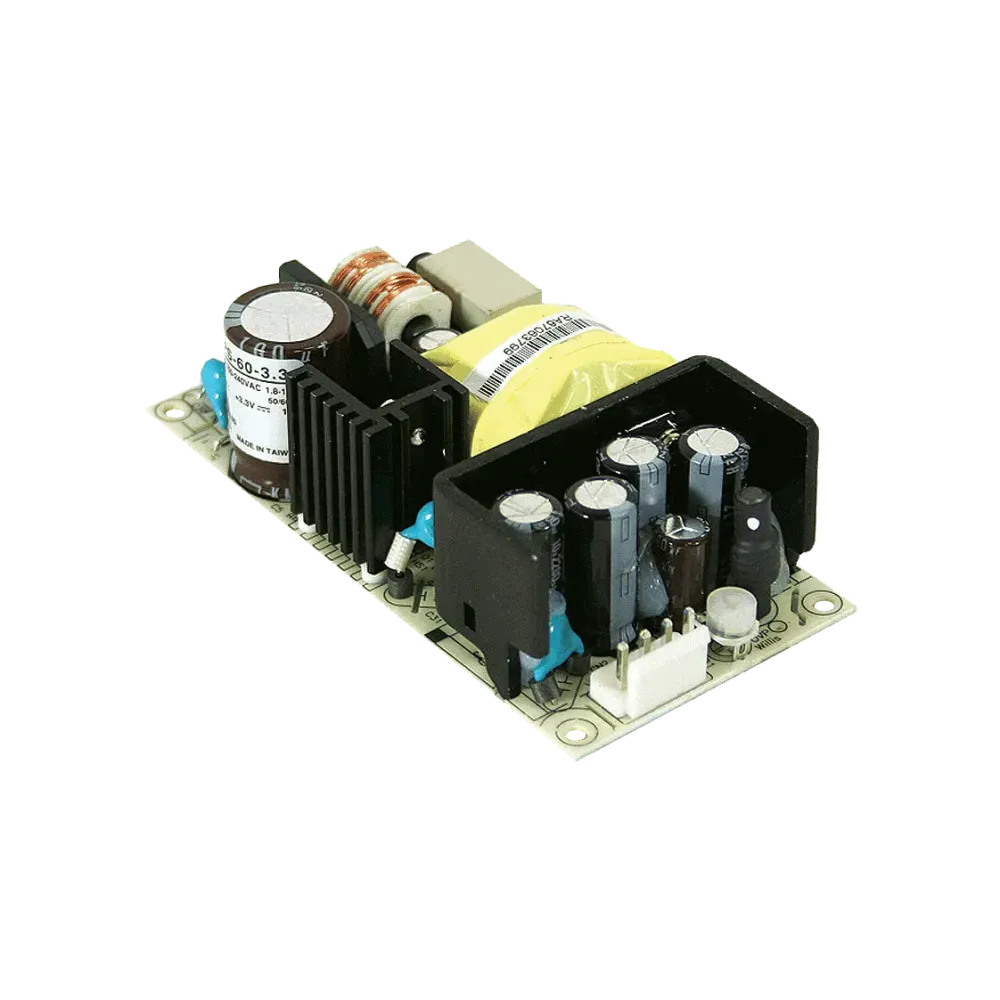

EPS-65-48 is an open 65W power supply in the industry standard 4x2 footprint for operation up to 4000 MüM.
Technical data
- Input voltage 85 to 264Vac
- No load power consumption <0.3W
- Optional: L-bracket or perforated plate
- Very compact design
- LED indicator for power-on
- Peak load for 10 sec.
- Short-circuit, overload
- and surge protection
- Dimensions 101.6 x 50.8 x 29mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Width | 50.8 mm |
| Length | 101.6 mm |
| Standard size | 2 x 4 inches |
| Protection class | Class I |
| Application | ITE/AV |
| Height | 29 mm |
| Power | 65 W |
| Output voltage (VDC) | 48 V |
| Additional functions | Peak Power |
