About the product

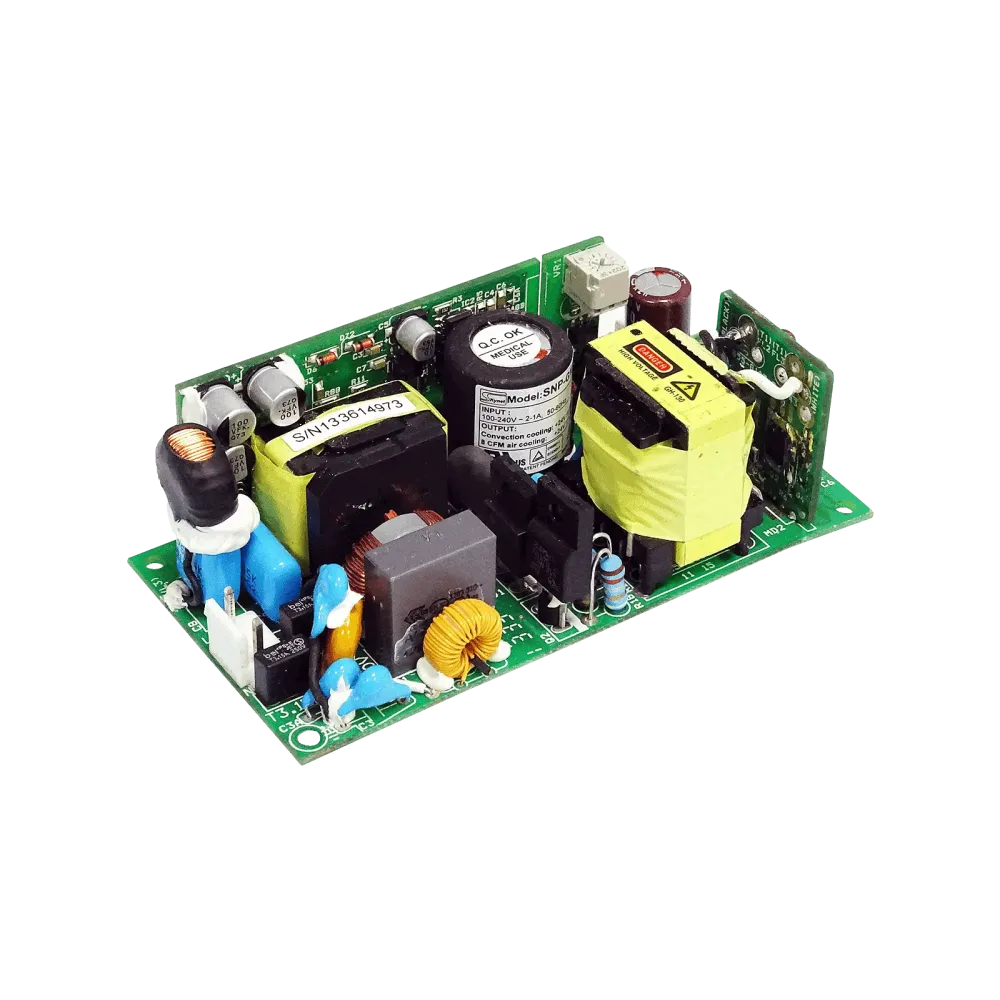

Skynet SNP-G12 series is a highly reliable power supply with peak power and a 10-year warranty.
Technical data
- Input voltage 90 to 264Vac
- Industry approval
- 200 watts peak load for 5 seconds.
- 12V output for fan
- Efficiency 82% to 90%
- Ambient temperature -20°C to +70°C
- No load power consumption 0.5W
- Dimensions 106.6×50.8.2×32.5mm (L x W x H)
Product specifications
| Height | 32 mm |
| Power | 150 W |
| Protection class | Class I |
| Width | 50.8 mm |
| Application | Medical |
| Manufacturer | Skynet |
| Output voltage (VDC) | 28 V |
| Length | 106.6 mm |
| Additional functions | 12VDC auxiliary output, peak power |
