About the product

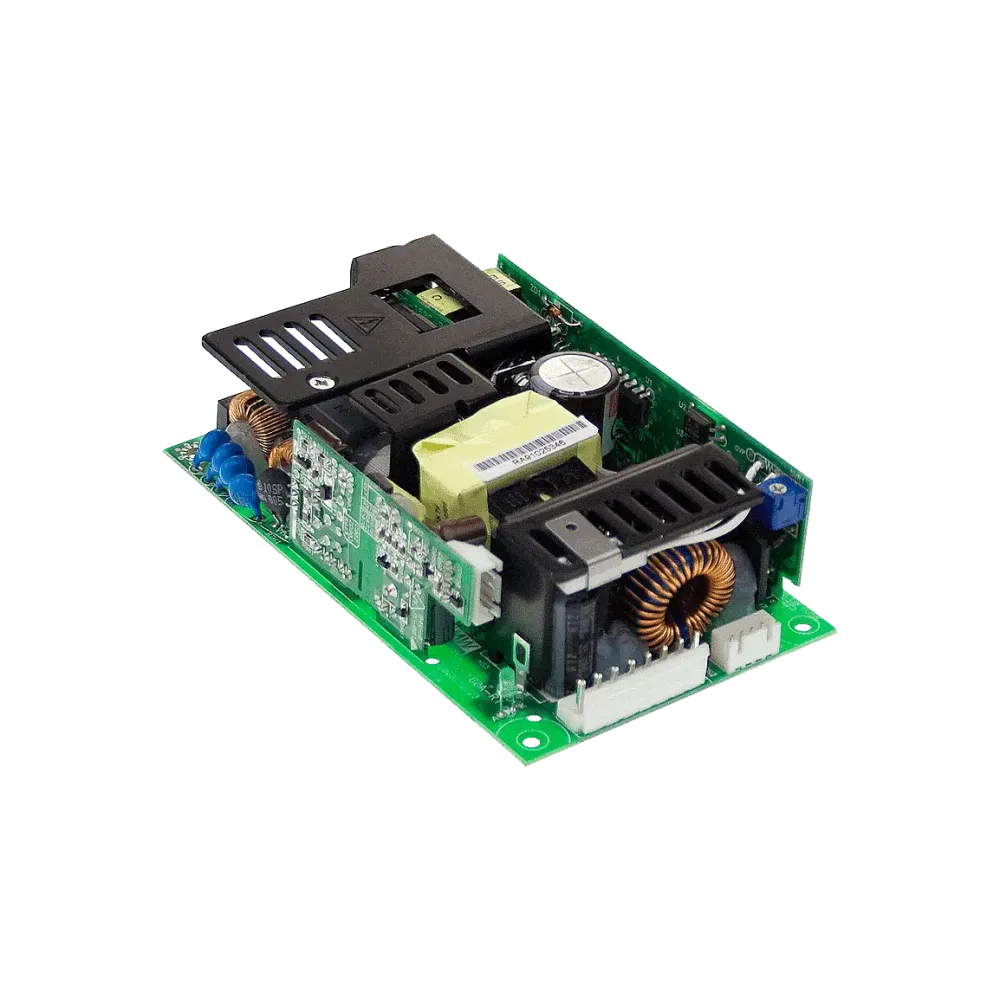

RPS-160-12 is a reliable open frame power supply unit with 2xMOPP medical approval. Without a fan, the power supply delivers up to 112W.
Technical data
- Input voltage 90 to 264Vac
- 160W power with 20.5CFM forced ventilation
- 112W power with convection
- 2x MOPP (insulation: primary to secondary)
- Suitable for BF applications
- Overload, overvoltage and overtemperature protection
- Dimensions 127 x 76.2 x 34.6mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Status signals | Power good signal |
| Width | 76.2 mm |
| Control signals | Remote ON/OFF |
| Length | 127 mm |
| Standard size | 3 x 5 inches |
| Application | Medical |
| Protection class | Class I |
| Power | 160 W |
| Height | 35 mm |
| Output voltage (VDC) | 12 V |
| Additional functions | 5VDC auxiliary output |
Data sheets
