About the product

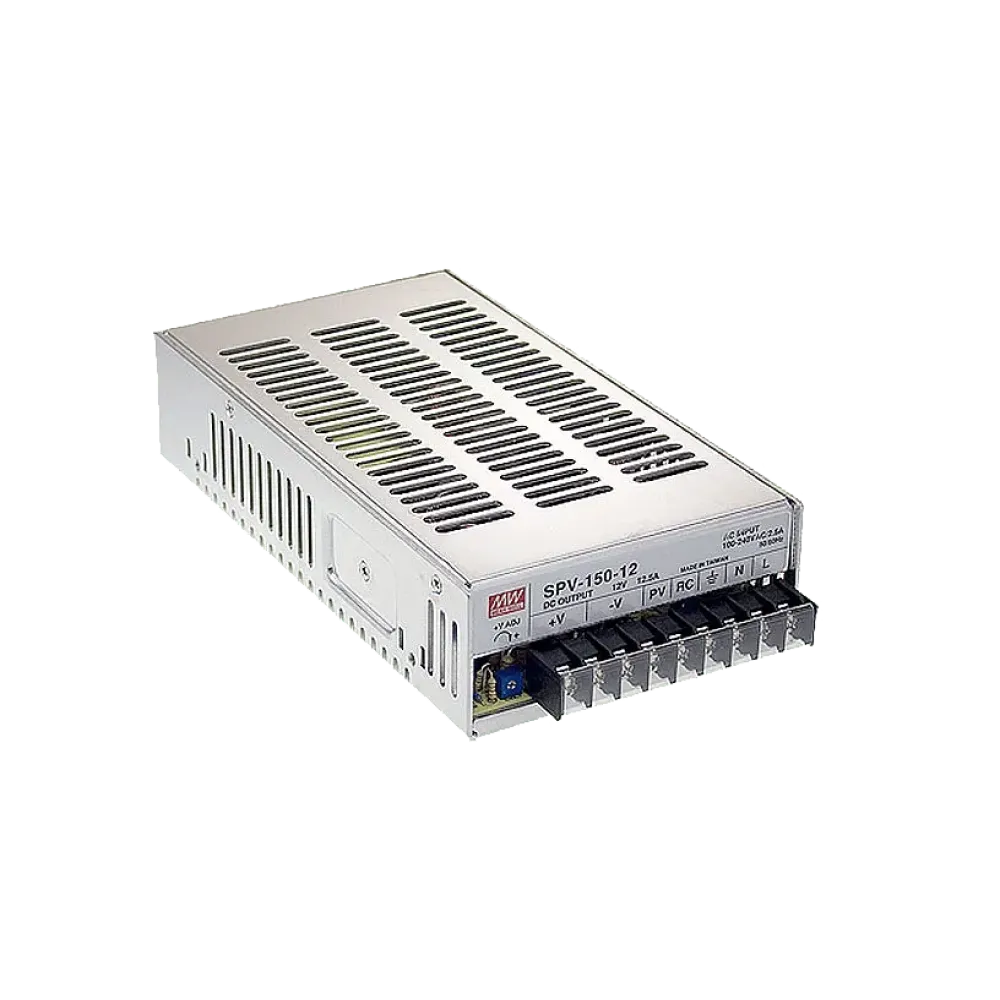

Mean Well SPV-150-12 switching power supply with programmable output voltage
Technical data
- Input voltage 88 to 264Vac
- With active PFC
- Output voltage programmable from 20% to 110% with external 1-5.5Vdc voltage.
- Metal housing with screw terminals
- Remote On/Off function
- Operating temperature range from -20°C to +65°C
- Dimensions 215 x 115 x 50mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 2.7 V |
| Maximum VDC setting range | 13.2 V |
| Width | 115 mm |
| Length | 215 mm |
| Input voltage range (VAC) | 88-264 V |
| Protection class | Class I |
| Application | ITE/AV |
| Height | 50 mm |
| Power | 150 W |
| Output voltage (VDC) | 12 V |
| Control signals | Programmable voltage, remote ON/OFF |
