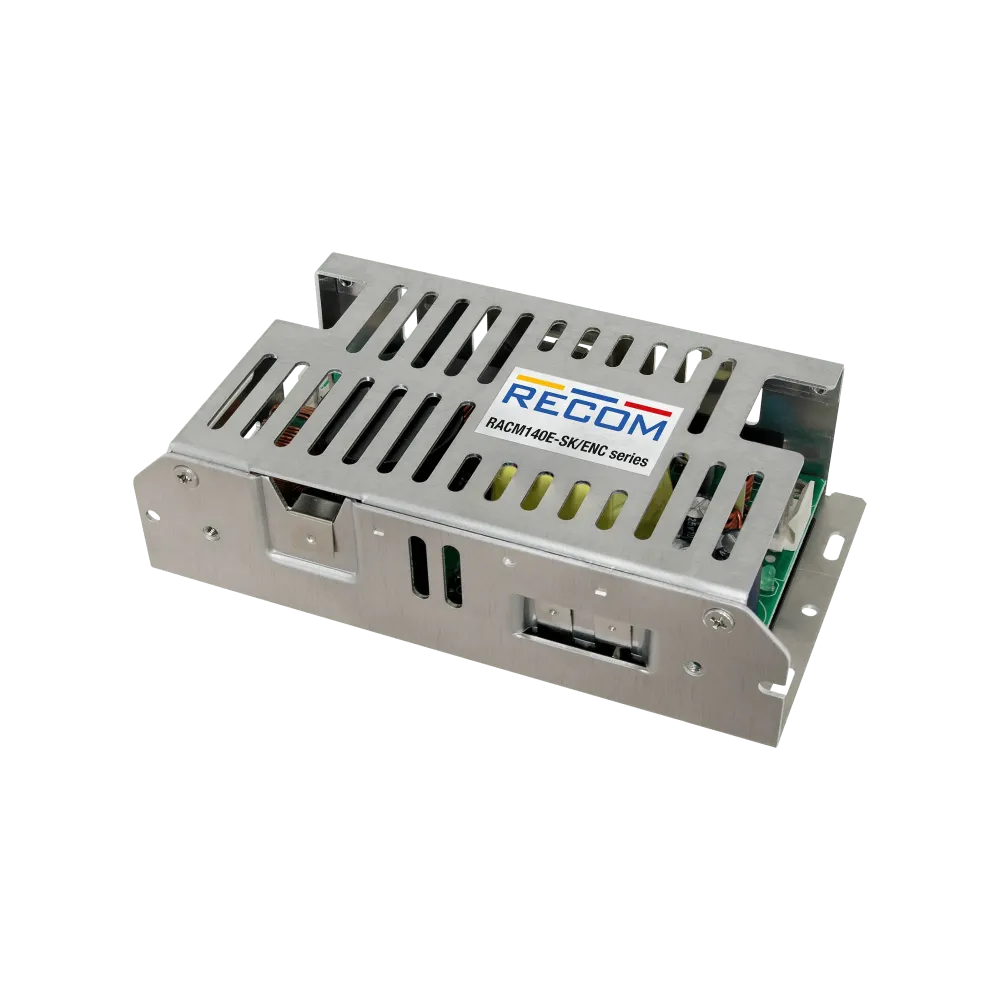

140W power supply unit in housing 12V/11.6A, industrial, medical, household

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

The RACM140E-K AC/DC power supply units are characterized by cost efficiency and reliability. They deliver a continuous output of 140 watts and a peak output of 210 watts for dynamic load peaks of up to 10 seconds. Mounting options include industry standard 3 "x5 screw points or robust lugs that allow direct top mounting on base plates. Connection is via a wiring harness and pin headers or optional tool-less "push-in" terminals. Certified for household and industrial standards with overvoltage category OVC III or OVC II for operation up to 5000 meters, the series has UL certifications with 2MOPP and meets BF requirements for medical use. To simplify system integration, the modules offer ample scope for compliance with EN55032 'B' limits and increased surge and burst immunity.

Technical data

Cost-efficient and reliable design
210W peak power for up to 10s
Overvoltage category OVC III; 2000m
5000m operating altitude
Open frame or closed; optional: push-in connections
2xMOPP insulation, BF applicable
3-year guarantee

Product specifications

Output voltage (VDC)	12 V
Minimum VDC setting range	12 V
Maximum VDC setting range	18 V
Power	140 W
Protection class	Class I
Application	Household, ITE/AV, Medical
Height	40 mm
Length	147 mm
Input voltage range (VAC)	80-264 V
Manufacturer	Recom
Width	81.5 mm
Additional functions	OVC III
