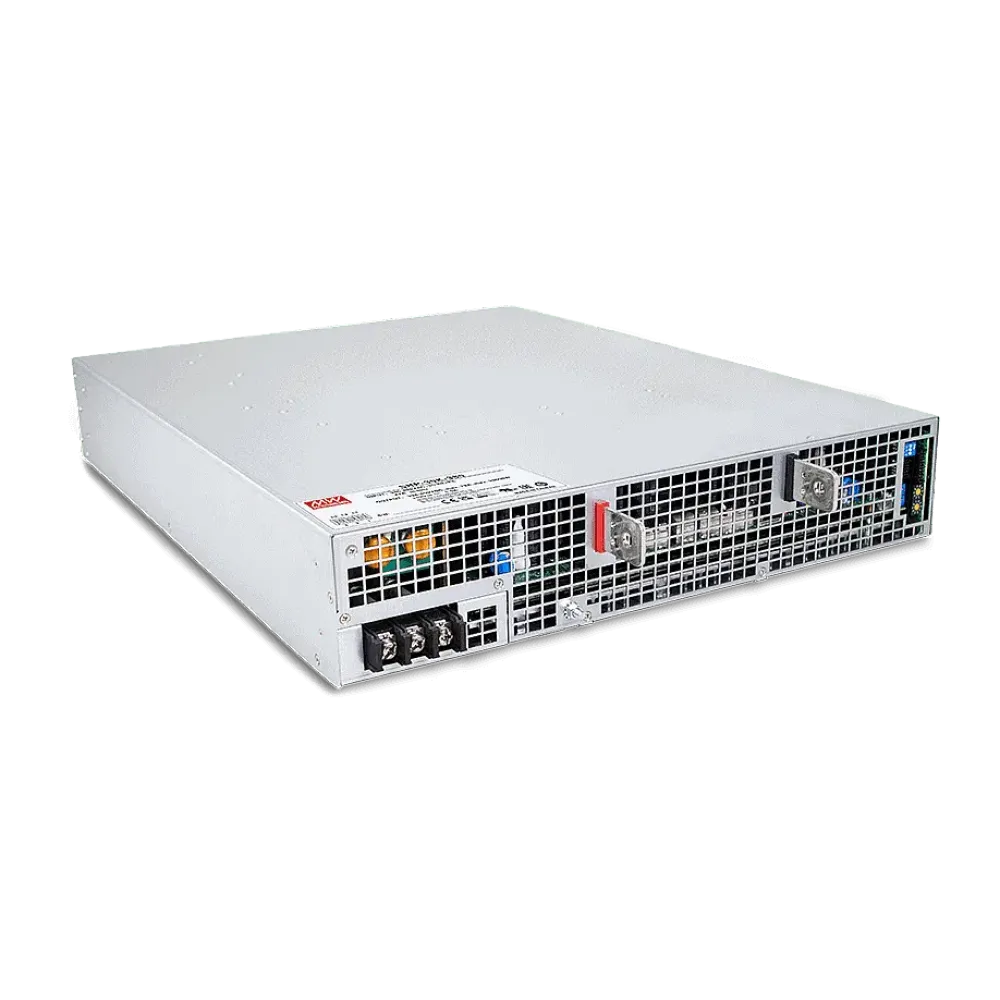

30kW 3-phase power supply 115V/261A

SHP-30K-115 is a digital 30kW power supply unit with 3-phase input. The power supply unit can be operated in the 3-phase network without a neutral conductor. Numerous additional functions such as programmable output, remote ON/OFF, auxiliary voltages and CAN bus interface facilitate integration into the overall system.

The built-in currrent sharing function allows up to 12 SHP-30K units to be connected in parallel to achieve a higher output.

MEAN WELL high-performance power supply system solutions - Simpex Electronic AG

Technical data

• Three-phase input voltage range 340 to 530Vac, 3-wire / delta connection or star connection
• Integrated remote on/off functions
• Auxiliary circuit 12V/0.1A
• Output voltage can be trimmed between 50 - 120% using an external control signal
• Output current can be trimmed between 1 - 100% using an external control signal
• Current sharing with up to 12 units up to 285kW
• Alarm signal outputs (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
• Integrated CAN bus interface for monitoring and control
• Air cooling with integrated, speed-controlled DC fan
• Operating temperature range from -30°C to +70°C
• Dimensions 540 x 424 x 83.5mm (L x W x H)
