100W power supply unit 48V/2.1A, peak power

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

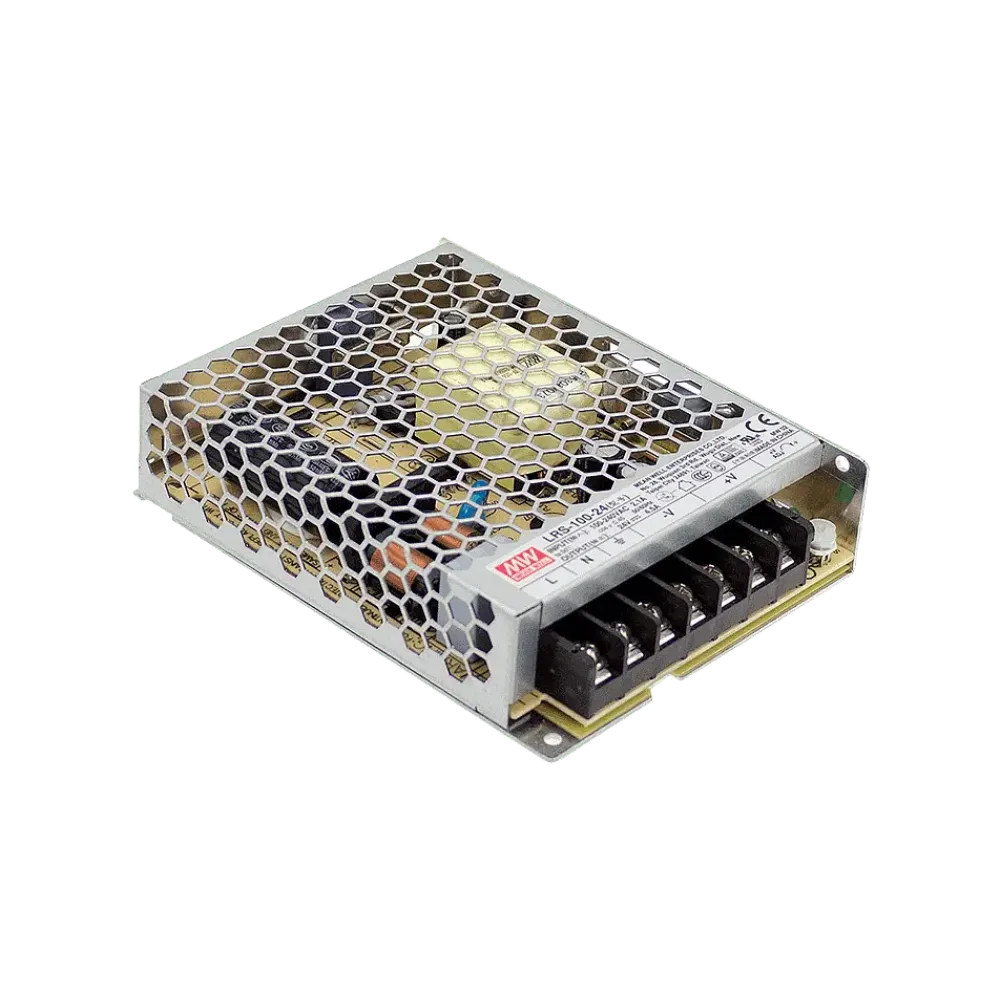

LRS-100N2-48 is a power supply unit in a perforated metal housing with a low height of just 30mm. The power supply delivers up to 200W peak power in the short term.

Technical data

Input voltage 85 to 264Vac
Up to 200W peak power
Power consumption at no load <0.5W
Metal housing with screw terminals
Complies with household appliance standards IEC/EN60335-1 and IEC/EN61558-1,-2-16
Designed for operations up to max. 4000m.a.s.l. operating altitude
Overvoltage category III (OVC III)
Operating temperature range from -30°C to +70°C
Withstands surge voltages up to 300Vac for up to 5 seconds
Vibration test up to 5G
Dimensions 129 x 97 x 30mm (L x W x H)

Product specifications

Height	30 mm
Minimum VDC setting range	43.2 V
Maximum VDC setting range	52.8 V
Application	Budget, ITE/AV
Width	97 mm
Length	129 mm
Protection class	Class I
Input voltage range (VAC)	85-264 V
Power	100 W
Output voltage (VDC)	48 V
Manufacturer	MEAN WELL
Additional functions	OVC III, Peak Power
