About the product

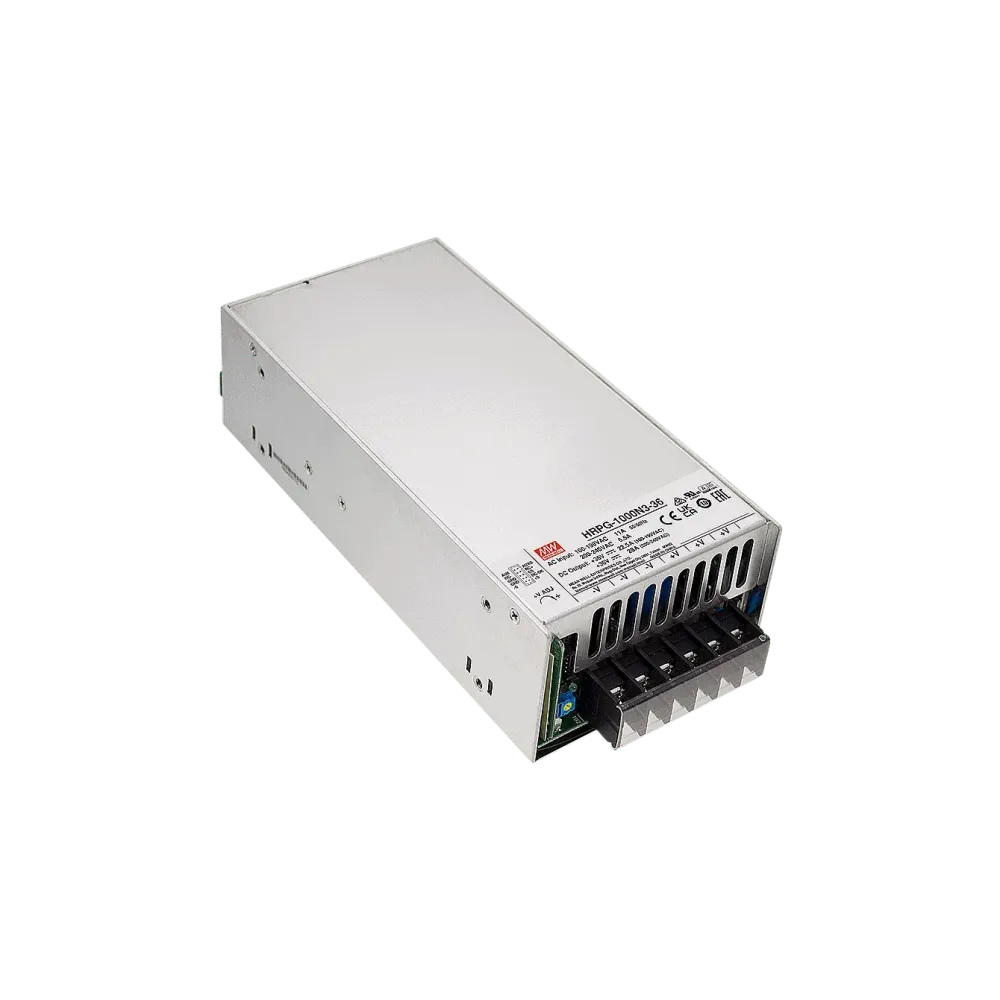

HRPG-1000N3-48 is a 1000W power supply unit in a housing for industrial applications. The power supply delivers up to 3200W of power for short periods, making it easier to start up critical loads with high starting currents, such as motors.
Technical data
- Input voltage 90 to 264Vac
- Delivers up to 320% peak power in the short term
- Remote On/Off
- Standby 5V@0.3A
- Remote Sense function
- Power consumption at no load 0.85W
- Current sharing up to 4000W (3+1)
- Air cooling with integrated fan
- Operating temperature range from -40°C to +70°C
- Withstands surge voltages up to 300Vac for up to 5 seconds
- Dimensions 218 x 105 x 63.5mm (L x W x H)
Product specifications
| Manufacturer | MEAN WELL |
| Minimum VDC setting range | 46 V |
| Maximum VDC setting range | 56 V |
| Control signals | Remote ON/OFF, Remote Sense |
| Length | 218 mm |
| Width | 105 mm |
| Power | 1008 W |
| Status signals | DC OK signal |
| Protection class | Class I |
| Application | ITE/AV |
| Height | 61.5 mm |
| Input voltage range (VAC) | 90-264 V |
| Output voltage (VDC) | 48 V |
| Additional functions | 5VDC auxiliary output, parallel switchable, peak power |
