About the product

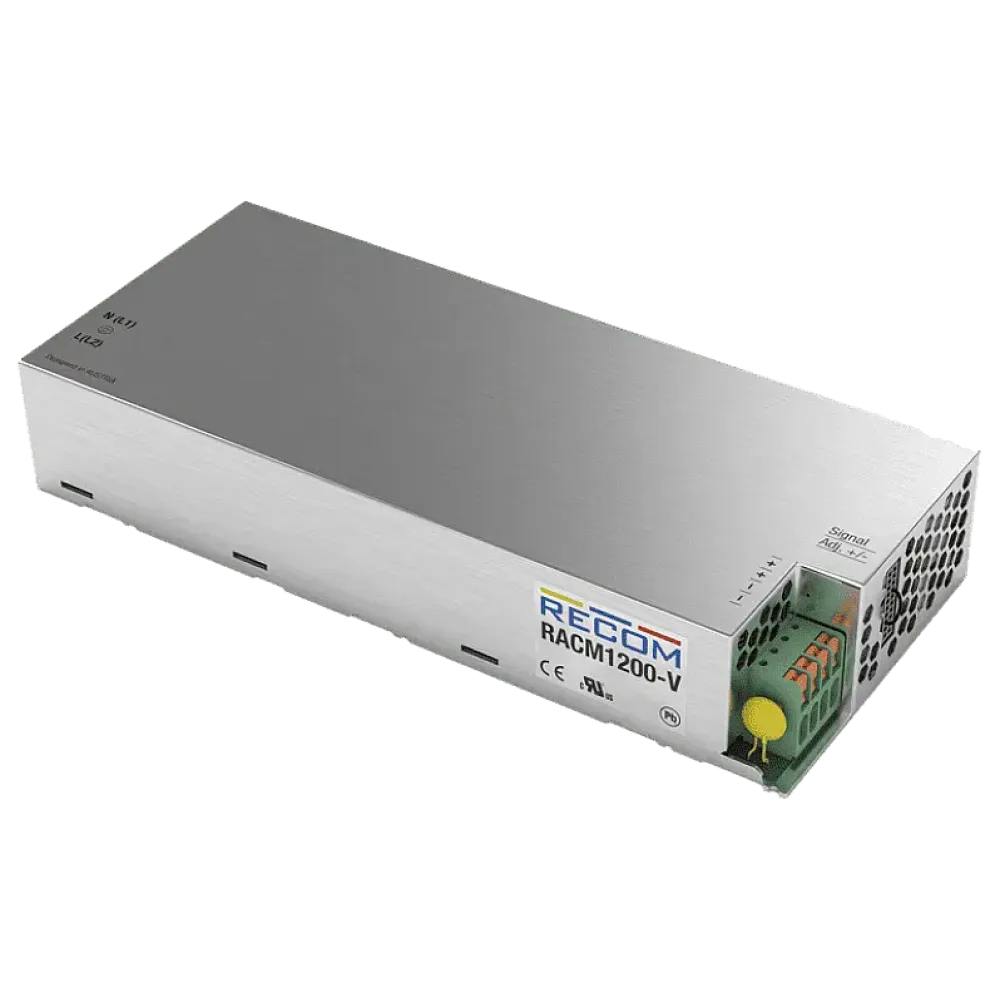

The RACM1200-V series sets a new benchmark for compactness in the AC power supply class for reliable fanless operation to ensure long-term system availability. A special design with baseplate cooling supports heat dissipation and enables a continuous output power of up to 1000 watts. In boost mode, up to 1200 watts of output power is available for up to 10 seconds, or for longer if there is sufficient system airflow through the device. A wide output voltage adjustment range and a combination of constant current limiting and hiccup mode settings make the product versatile. The various analog control and monitoring functions are accessible via a connector. Version with PMBus interface
Technical data
- Up to 1000 watts fanless power / 1200W boost
- Developed and manufactured in Europe
- Efficiency of over 90% from 15% load
- Wide operating temperature range -40..+80°C
- Certified according to industry and medical standards
- Analog control and monitoring function
- Customized variants available on request
Product specifications
| Length | 228 mm |
| Additional functions | 5VDC auxiliary output, adjustable 5VDC fan output |
| Control signals | Remote ON/OFF, Remote Sense |
| Width | 96.2 mm |
| Power | 1200 W |
| Protection class | Class I |
| Application | ITE/AV, Medical |
| Height | 40 mm |
| Input voltage range (VAC) | 80-264 V |
| Manufacturer | Recom |
| Output voltage (VDC) | 48 V |
| Status signals | AC OK signal, PSU OK |
