About the product

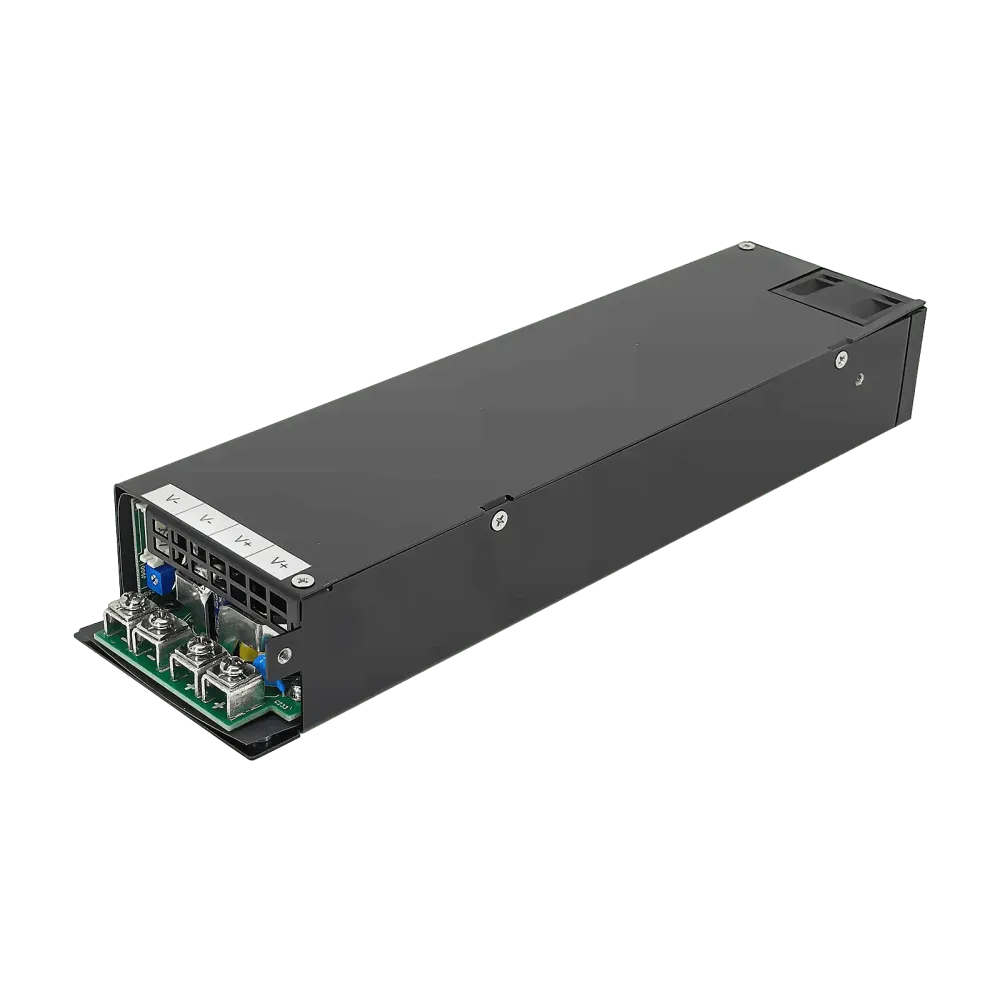

The NGB1200 series from SL Power is a powerful family of next generation AC/DC power supplies for medical and industrial applications.
Technical data
- 1200Watt output power
- 3 "x 10.5 "x 1.6" Housing
- 85V..264Vac Input voltage range
- Meets Class B emission level
- >10-year electrolytic capacitor service life
- -20°C..+70°C Operating temperature range
- Complies with IEC/UL/EN60601-1-1, 3rd Edition
- IEC/UL/EN62368-1 approved
- <100uA leakage current
- 5000m.a.s.l.
- Class I and Class II input version available
- 3-year guarantee
- SL Power Manufacturer
Product specifications
| Output voltage (VDC) | 15 V |
| Height | 40.64 mm |
| Manufacturer | SL Power |
| Width | 76.2 mm |
| Control signals | Remote ON/OFF |
| Power | 1200 W |
| Protection class | Class I |
| Application | ITE/AV, Medical |
| Input voltage range (VAC) | 85-264 V |
| Length | 266.7 mm |
