30W AC/DC power supply unit for flush-mounted box 12V/2.5A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

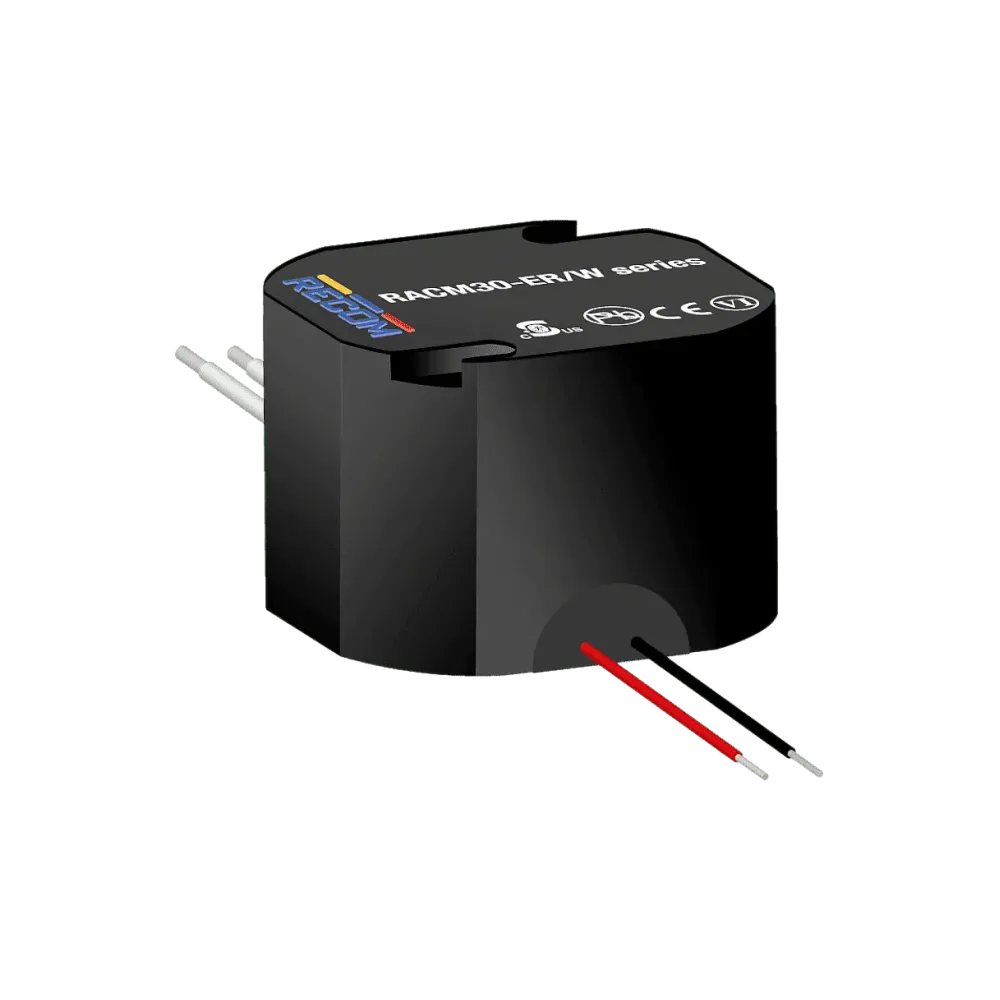

RECOM RACM30-ER/W are reliable and highly efficient power supplies in a potted, waterproof housing with IP68 certification, suitable for flush wall mounting. All versions are covered by multiple certifications for domestic, medical and ITE safety standards. With certified operation up to 5000m and an ambient temperature range of -20°C to +70°C, the compact modules are designed to power applications in the sanitary, healthcare, smart building, automation and household sectors. As these modules do not require any external components, they are ready for connection and can be used immediately.

Technical data

Household, medical and ITE-certified
Class II installations (without FG)
Waterproof encapsulation to IP68
Durable components, robust module
Energy efficiency level VI
Cable and connector modifications on request

Product specifications

Output voltage (VDC)	12 V
IP protection	IP68
Length	57.1 mm
Height	33.5 mm
Width	51 mm
Protection class	Class II
Application	Household, ITE/AV, Medical
Power	30 W
Manufacturer	Recom
Additional functions	Connection with cable, installation in installation box
