About the product

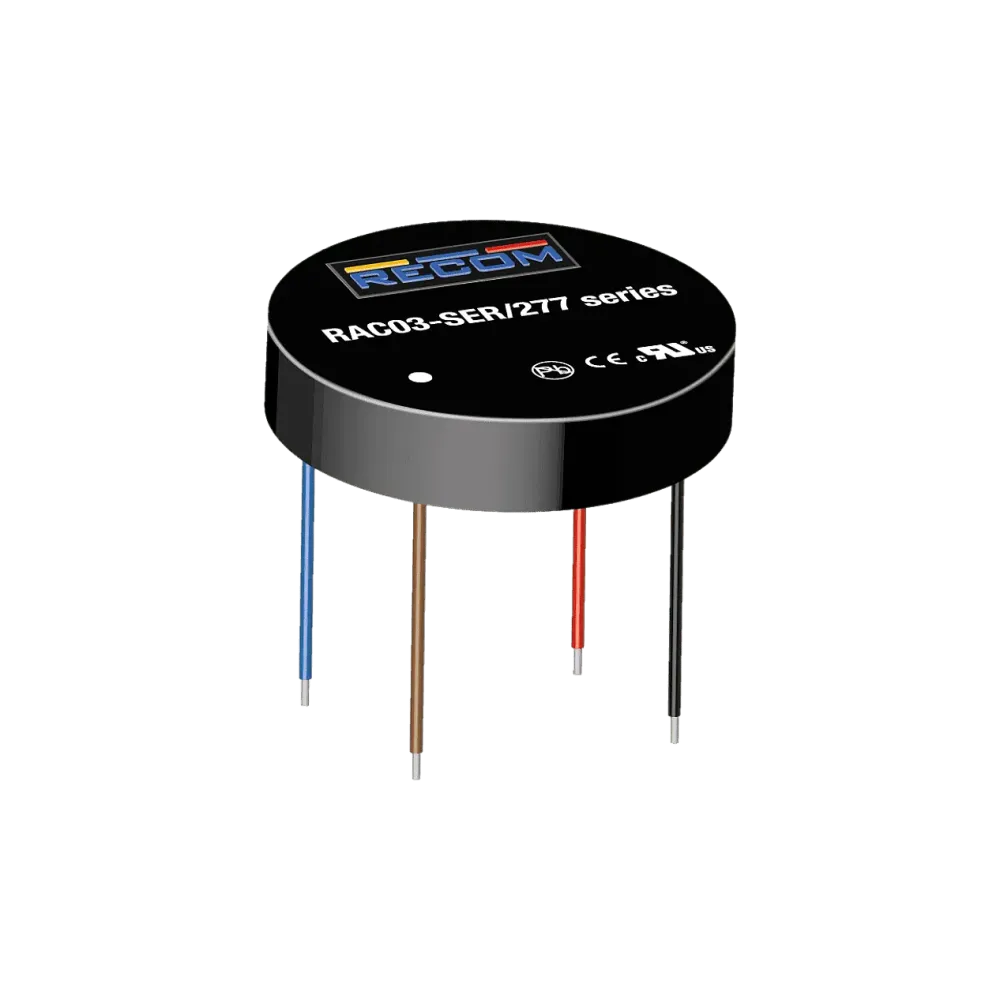

The modules of the RAC03-SER/277 series are regulated AC/DC converters with 3kVAC insulation and a round, flat shape. This series has been developed for low stand-by consumption and an extremely wide input voltage range. It can be used for a wide range of applications in building automation, security systems and communication systems.
Technical data
- 40mW max. power consumption without load
- High efficiency of up to 76
- Isolated output 3kVAC / 1 min
- SCP and OVP protection
- Wide operating temperature range: -40°C to +85°C
- Universal input 85-305VAC
Product specifications
| Output voltage (VDC) | 12 V |
| Application | Household |
| Width | 50.3 mm |
| Length | 50.3 mm |
| Input voltage range (VAC) | 85-305 V |
| Protection class | Class II |
| Height | 11 mm |
| Power | 3 W |
| Manufacturer | Recom |
| Additional functions | Connection with cable |
