3W AC/DC power supply unit round design with cable connection 24V/125mA

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

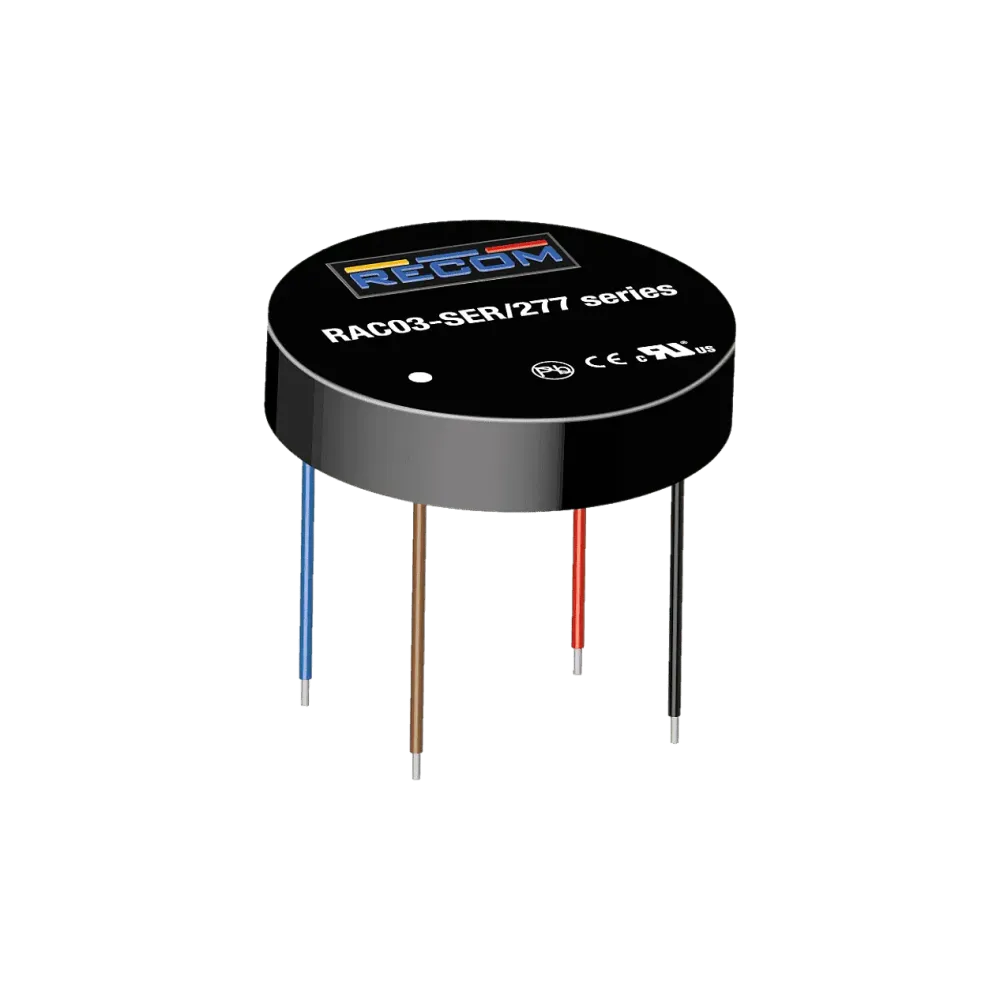

The modules of the RAC03-SER/277 series are regulated AC/DC converters with 3kVAC insulation and a round, flat shape. This series has been developed for low stand-by consumption and an extremely wide input voltage range. It can be used for a wide range of applications in building automation, security systems and communication systems.

Technical data

40mW max. power consumption without load
High efficiency of up to 76
Isolated output 3kVAC / 1 min
SCP and OVP protection
Wide operating temperature range: -40°C to +85°C
Universal input 85-305VAC

Product specifications

Output voltage (VDC)	24 V
Application	Household
Width	50.3 mm
Length	50.3 mm
Input voltage range (VAC)	85-305 V
Protection class	Class II
Height	11 mm
Power	3 W
Manufacturer	Recom
Additional functions	Connection with cable
