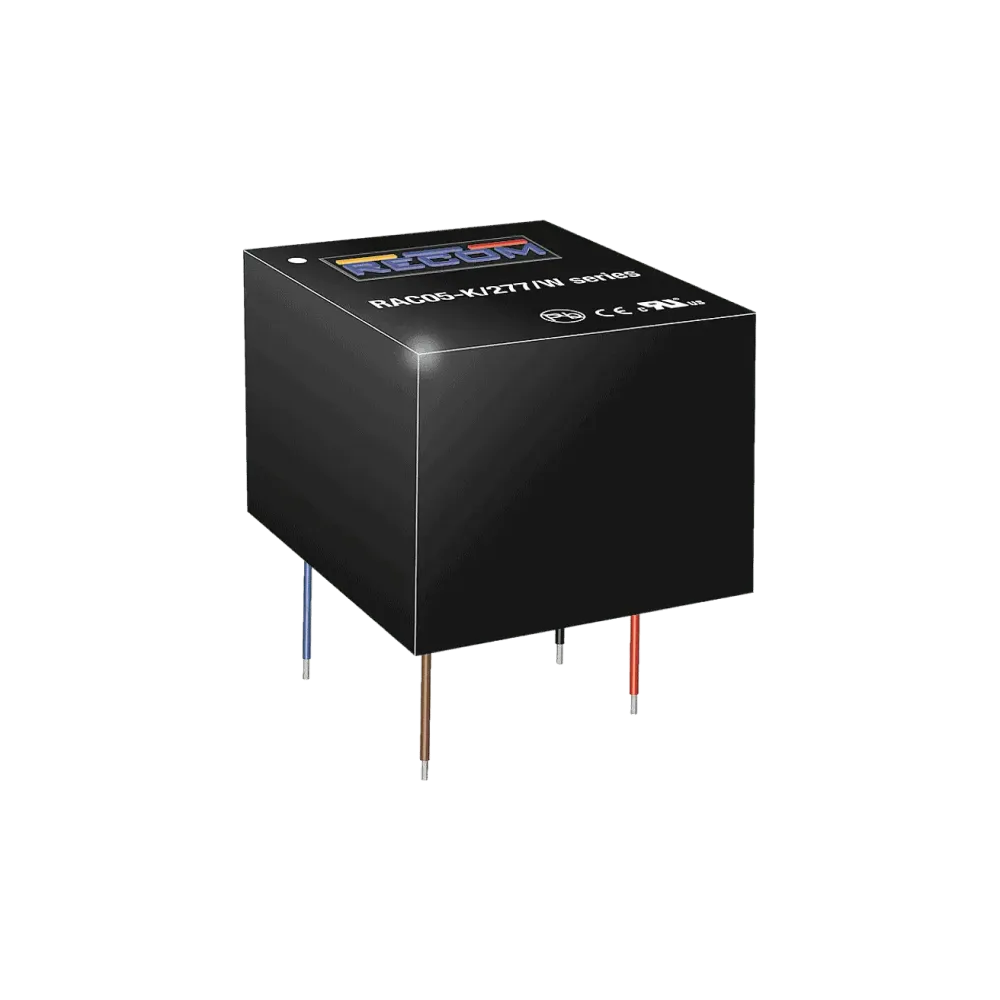

5W AC/DC power supply unit with cable connection 12V/416mA

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

The RAC05-K/277 series are versatile 5-watt AC/DC power supply units for demanding mains inputs of overvoltage category OVC III from 90VAC to 305VAC with a particularly wide operating temperature range from -40°C to +90°C. These modules are designed to power applications in the fields of automation, Industry 4.0, IoT, household and smart buildings worldwide. For worldwide use, they have international safety certifications for industrial, household, ITE and domestic standards.

Technical data

Large input range 85-305VAC
Optimized standby mode (eco-design Lot 6)
Overvoltage category OVC III (2000m)
Operating temperature range: -40°C to +90°C
Overvoltage and overcurrent protection
EMC-compliant without external components
Encapsulated module wired

Product specifications

Output voltage (VDC)	12 V
Application	Budget, ITE/AV
Height	21.8 mm
Width	26.7 mm
Length	31.7 mm
Input voltage range (VAC)	85-305 V
Power	5 W
Protection class	Class II
Manufacturer	Recom
Additional functions	Connection with cable
