About the product

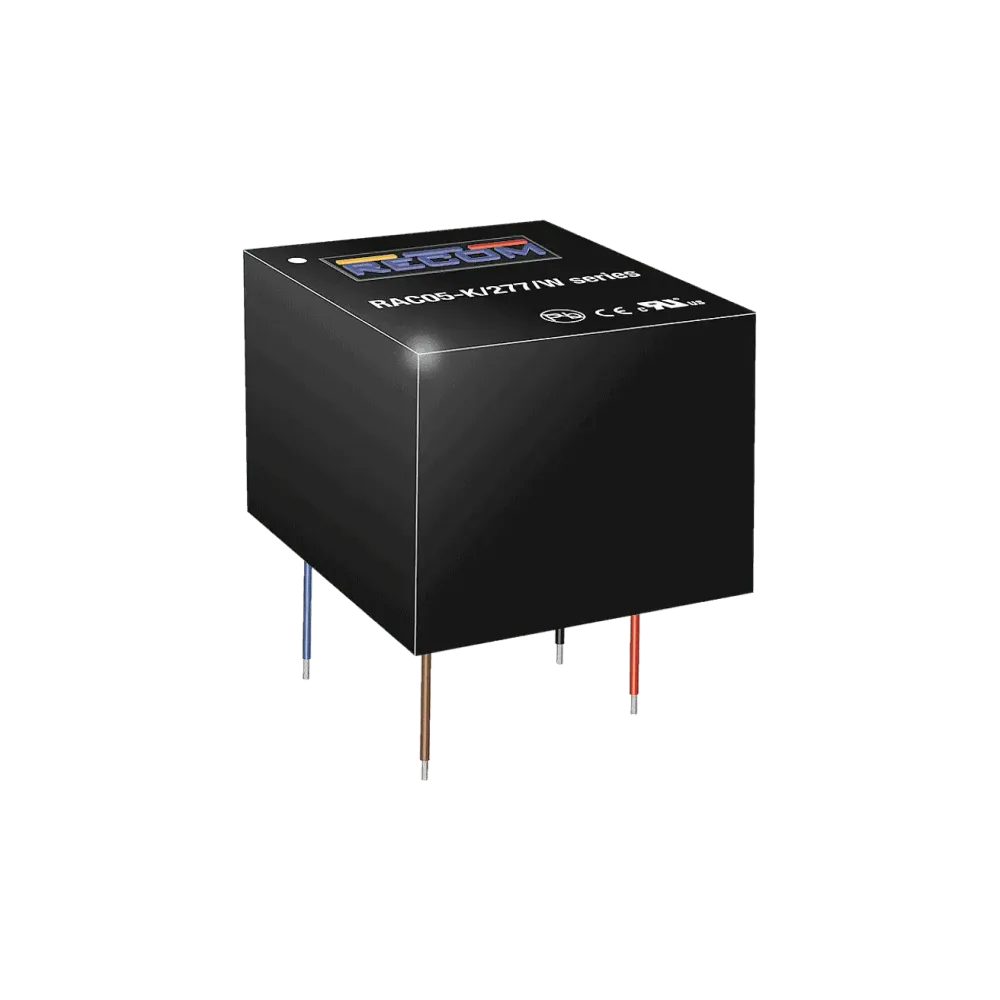

The RAC05-K/277 series are versatile 5-watt AC/DC power supply units for demanding mains inputs of overvoltage category OVC III from 90VAC to 305VAC with a particularly wide operating temperature range from -40°C to +90°C. These modules are designed to power applications in the fields of automation, Industry 4.0, IoT, household and smart buildings worldwide. For worldwide use, they have international safety certifications for industrial, household, ITE and domestic standards.
Technical data
- Large input range 85-305VAC
- Optimized standby mode (eco-design Lot 6)
- Overvoltage category OVC III (2000m)
- Operating temperature range: -40°C to +90°C
- Overvoltage and overcurrent protection
- EMC-compliant without external components
- Encapsulated module wired
Product specifications
| Manufacturer | Recom |
| Application | Budget, ITE/AV |
| Height | 21.8 mm |
| Width | 26.7 mm |
| Length | 31.7 mm |
| Input voltage range (VAC) | 85-305 V |
| Power | 5 W |
| Protection class | Class II |
| Output voltage (VDC) | 15 V |
| Additional functions | Connection with cable |
Data sheets
