About the product

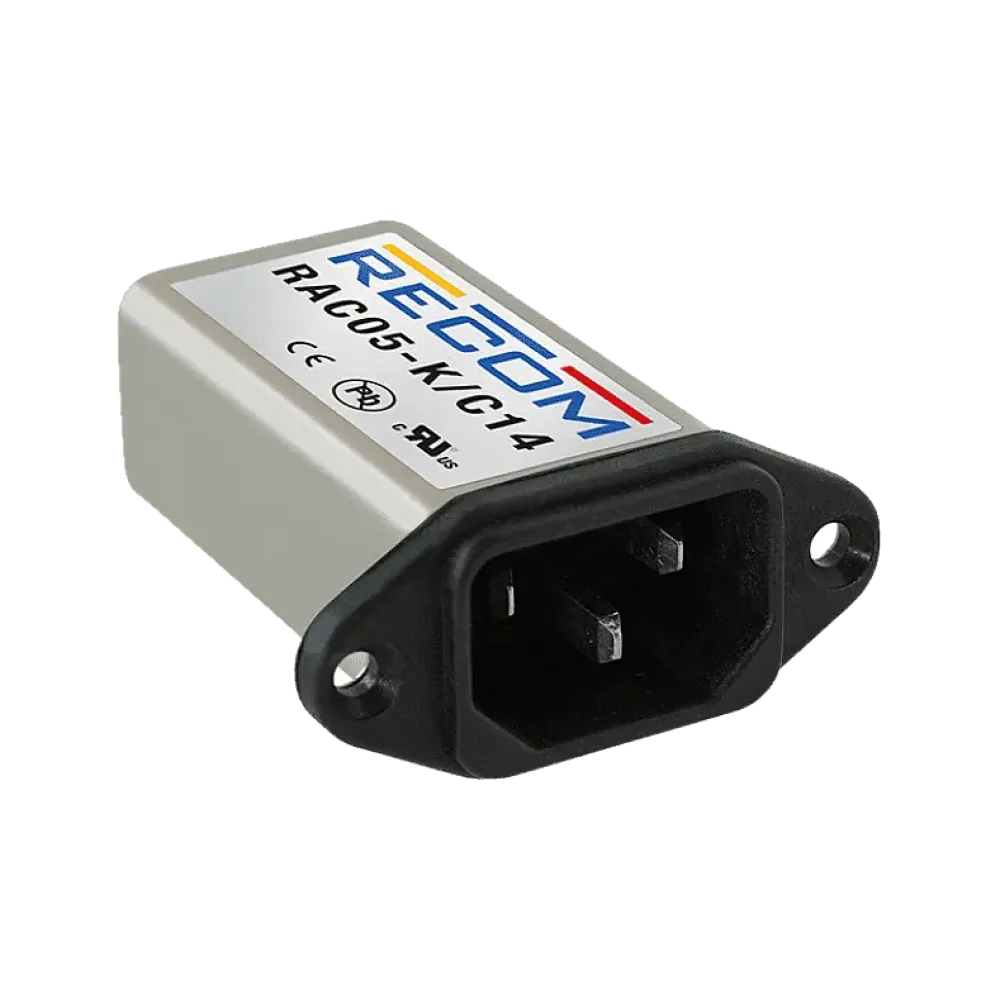

The RAC05-K/C14 is a unique, patented design that combines a mains filter and an isolated power supply in the same housing as a mains input filter only, at a lower price than many other mains filters. It fits into a standard IEC mounting hole, so installation time is only a few seconds. The touchable SELV output terminals are available in 3.3 V, 5 V, 12 V, 15 V and 24 V DC and are protected against short circuit, overload and overvoltage. The metal housing provides secure mounting and improves heat dissipation, allowing an operating temperature of -25°C to +70°C. The RAC05-K/C14 is ideal for powering single board computers such as the Raspberry Pi (including touchscreen), Arduino, BBC Micro:bit, etc.
Technical data
- Insulated power supply unit with integrated mains filter
- Packed in a mains filter housing
- Safe, touchable DC outputs
- Simple installation
- Worldwide standard IEC input
- 85-264VAC universal input voltage
- Unique patented design
Product specifications
| Output voltage (VDC) | 24 V |
| Width | 48 mm |
| Length | 67 mm |
| Power | 5 W |
| Protection class | Class I |
| Application | ITE/AV |
| Input voltage range (VAC) | 85-264 V |
| Manufacturer | Recom |
| Height | 23 mm |
| Additional functions | Mains filter housing |
