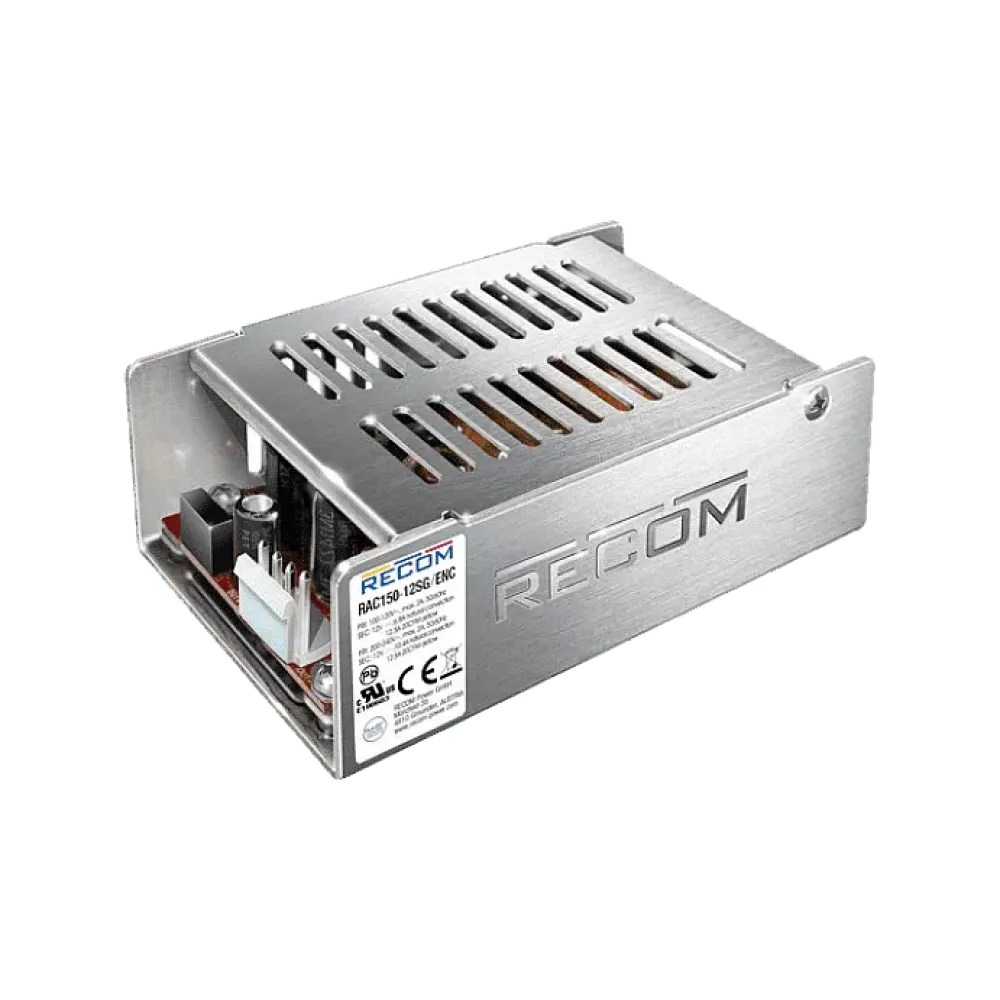

150W AC/DC power supply 24V/6.25A

The RAC150 series are cost-effective 150 watt AC/DC power supplies in a standard 2x4 format with a universal input range of 90-264VAC for worldwide use. They deliver up to 125 watts with natural air convection for use in tight, space-critical enclosures with low airflow. The UL and CE marks with CB reports include both the new 62368 safety standard and the previously used 60950 safety standard. The RAC150 series offers tightly regulated 12V, 24V and 48VDC outputs with 3kVAC isolation and Class B EMC certifications and comes with a three-year warranty.

Technical data

• Universal input 90-264VAC
• Efficiency 91 %
• Protection against short circuit and overvoltage
• Active PFC function, PF>0,95
• Power indicator LED
• UL, CE-marked (CB report)
• Protective coating standard
