7200W 3-phase power supply 55V/131A

Delivery at your place between May 21 and Jun 25 2025

Add to cart

About the product

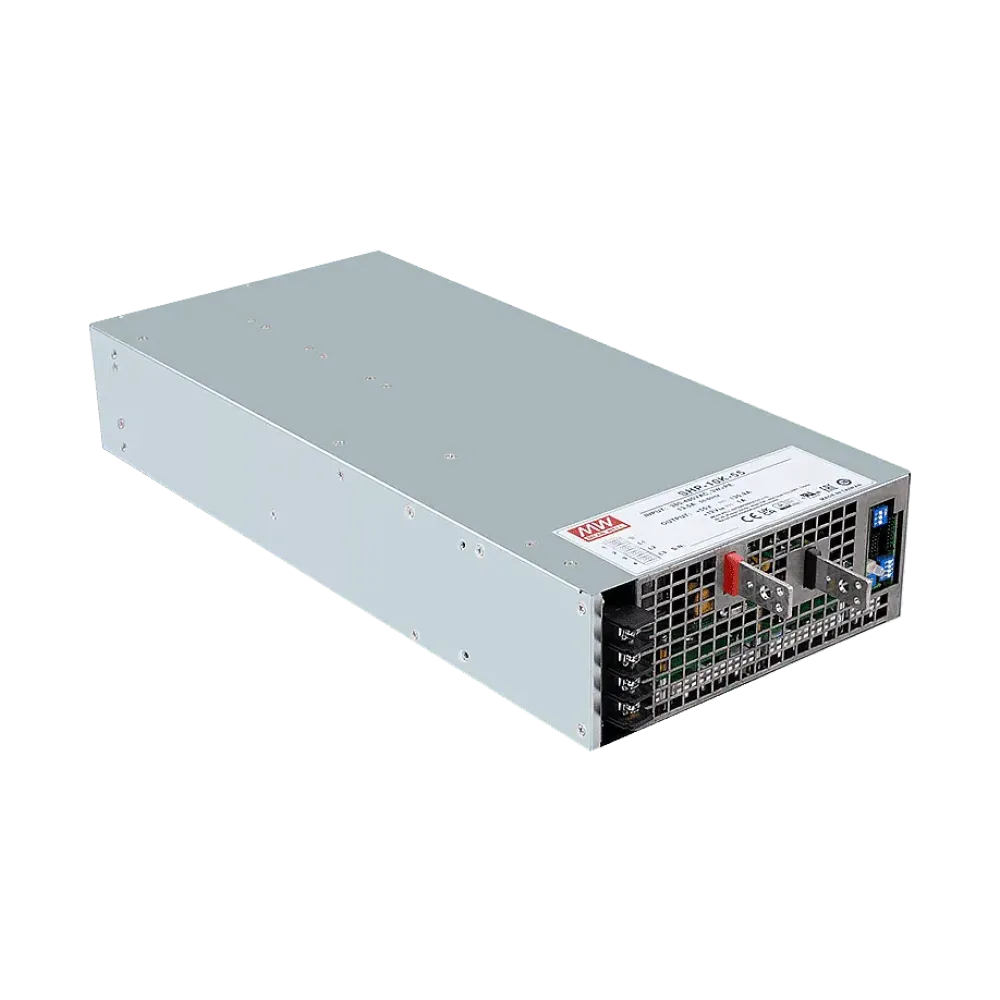

SHP-10K-55 is a digital 10kW power supply unit with 3-phase input.

Three-phase input voltage range 340 to 530Vac, 3-wire / delta connection or star connection
Integrated remote on/off functions
Auxiliary circuit 12V/0.1A
Output voltage can be trimmed between 50 - 120% using an external control signal
Output current can be trimmed between 20 - 100% using an external control signal
Current sharing with up to 4 units up to 40kW
Alarm signal outputs (relay contact and open collector signal): AC fail, DC OK, fan fail, OTP
Integrated CAN bus interface for monitoring and control
Air cooling with integrated, speed-controlled DC fan
Operating temperature range from -30°C to +70°C
Dimensions 460 x 211 x 83.5mm (L x W x H)

Manufacturer	MEAN WELL
Status signals	AC OK signal, DC OK signal, fan failure
Control	CAN bus
Input voltage range (VAC)	340-530 V
Maximum VDC setting range	55 V
Additional functions	12VDC auxiliary output, switchable in parallel
Control signals	Programmable current, Programmable voltage, Remote ON/OFF
Power	7200 W
Output voltage (VDC)	55 V
Width	211 mm
Length	460 mm
Height	83.5 mm
Application	ITE/AV
Minimum VDC setting range	27.5 V
